80W MOPA JPT Laser Cutting Machine for Colored Metal Engraving & Metal Cutting | M-80
Free Shipping within UK
Free Shipping within UK
Couldn't load pickup availability
Recommended software:
LightBurn software
Manual Focus
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk

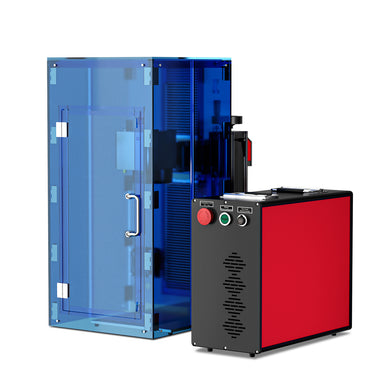

OMTech 80W MOPA Fiber Laser Cutter
The Galvo-Tech drive and scanning system provides both outstanding accuracy and fast, stable marking of flat surfaces at speeds up to 7000 mm/s per second.
OMTech's fiber laser engraver is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with quick turnaround and perfect accuracy.
When you need to engrave rings, bracelets, or other curved surfaces, simply connect your rotary axis attachment(not incl.) via the plug-and-play 4-pin connection port.
The fiber laser limit switch ensures precise and consistent positioning, especially for delicate items that are challenging to align naturally during engraving. This feature optimizes accuracy and efficiency in laser marking operations, maintaining a stable focal point for intricate designs.
Achieve exact focusing by simply adjusting the focus-height wheel. This intuitive feature allows for quick and precise calibration, ensuring optimal laser performance for every project. Whether you're working on intricate designs or large-scale engravings, the adjustable focus-height wheel guarantees that each item is perfectly aligned for superior results.
OMTech's fiber laser engraver features a powerful preview function that displays the exact dimensions and position of your design with a red laser frame. For vector graphics or text, you can preview the entire marking outline. This ensures perfect alignment and reduces errors, making your engraving process more efficient and accurate.
Our fiber marker has a protective enclosure that ensures safety by automatically halting the laser when the door is opened, preventing accidental exposure and protecting the operator for worry-free engraving.
Our fiber laser marker features an emergency stop button for immediate response in critical situations, allowing operators to instantly halt operations and ensure safety, preventing accidents.
OMTech fiber laser engraver offers unparalleled precision, with a positioning accuracy of ±0.000004 in. (±0.1 μm), making it your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with quick turnaround and perfect accuracy.
This EzCad2-based fiber laser engraver works with LightBurn's latest galvo functionality on Windows, MacOS, and Linux systems to let you create even the most intricate patterns easily.

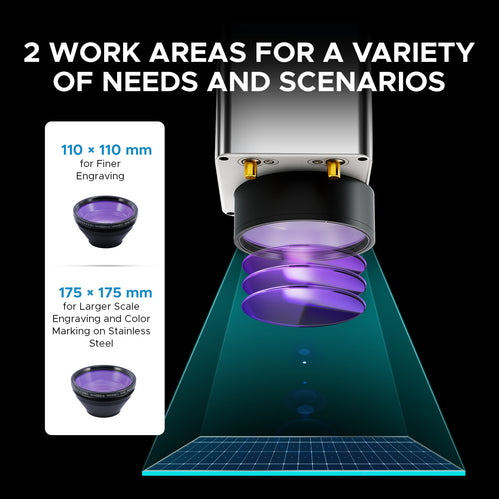

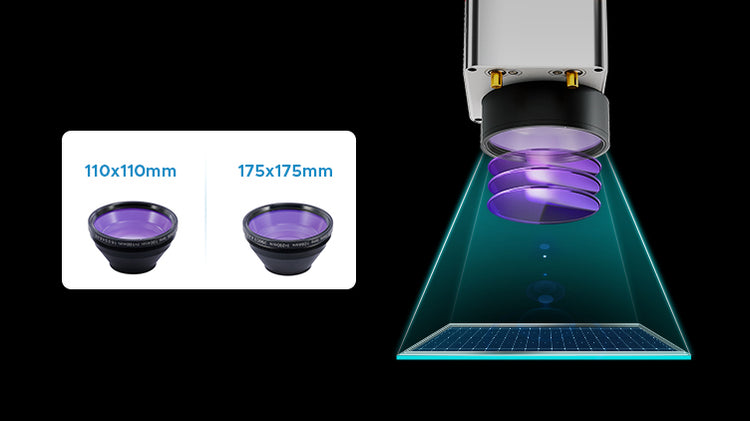

The Galvo-Tech galvanometric system and 2 compact Fθ field lenses of 110x110 mm (4.3x4.3 inch) & 175x175 mm (6.9x6.9 inch) working areas ensure quick work with less than 1% distortion from your design.
Laser Type: JPT MOPA
Laser Power: 80W
Processing Area: 110x110 mm / 175x175 mm
Dimensions: 35x59x69.2 cm
Net Weight: 35 kg
Max. Working Speed: 7,000 mm/s
Laser Precision: ±0.1 μm
Laser Frequency: 1 to 4,000 kHz
Laser Wavelength: 1064 nm
Max. Pulse Energy: 1.5 mJ
Pulse Width: 2 to 500 ns
Min. Beam Quality (Max. m²): 1.4
Compatible Software: EzCad2 (pre-installed), LightBurn, AutoCAD, CorelDraw
Service Life: Up to 100,000 operating hours
1-year warranty on fiber laser source.（ Due to quality issues, fiber laser source are eligible for a one-year free replacement, with repairs available for the second year)
1 × Fiber Laser Engraving Machine
1 × Monitor Mount
1 × Goggles
8 × Allen Keys
1 × Power Cord
1 × Foot Switch
1 × USB Flash Drive
1 × Ground Wire
1 × Accessory box
2 × Mounting Clamps
4-6 × Mounting Screws
1 × Tape Measure
1 × Instruction Manual
