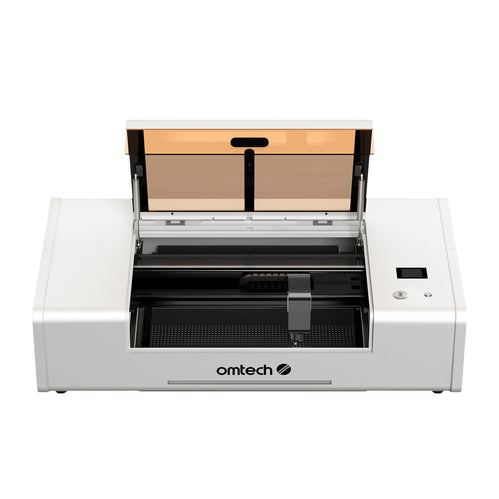

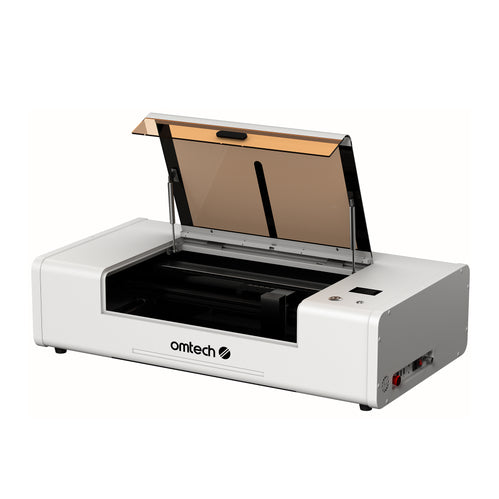

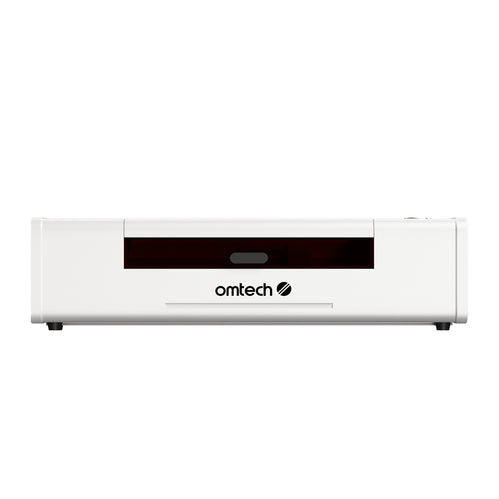

55W CO2 Polar Lite Desktop Laser Cutter and Engraver with 500x300 mm Engraving Area and Autofocus | Polar Lite
Free shipping within UK mainland
Free shipping within UK mainland
Couldn't load pickup availability
Recommended software:
LightBurn software
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk
Results That Matter,
Costs That Don’t

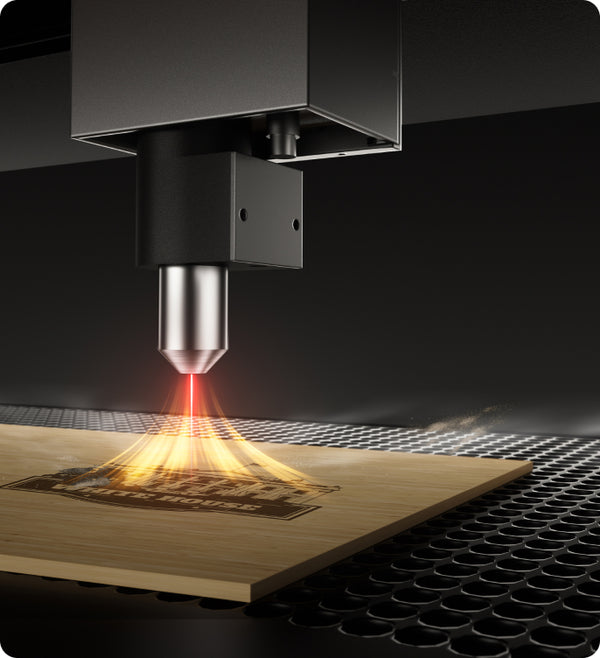

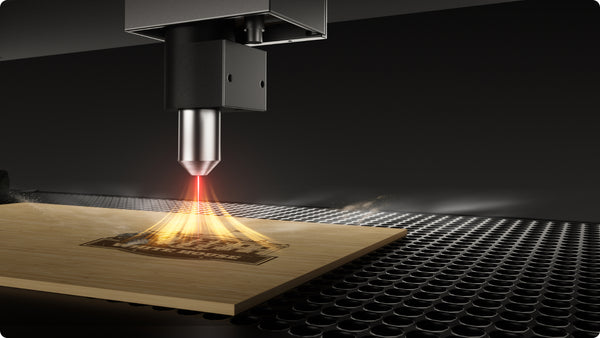

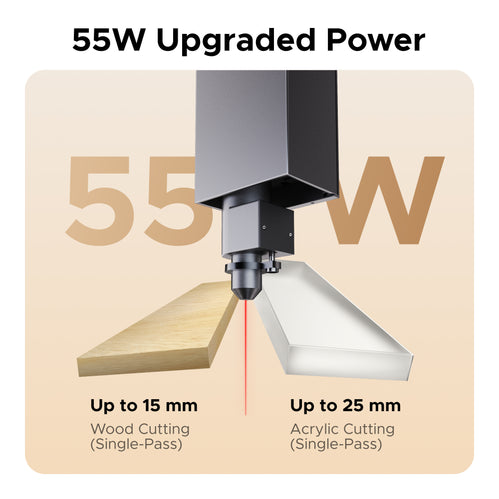

55W Powerful Laser Tube
Effortlessly Cut, Engrave, & Shape
Wood, Acrylic, Leather, Fabric, & Coated Metal

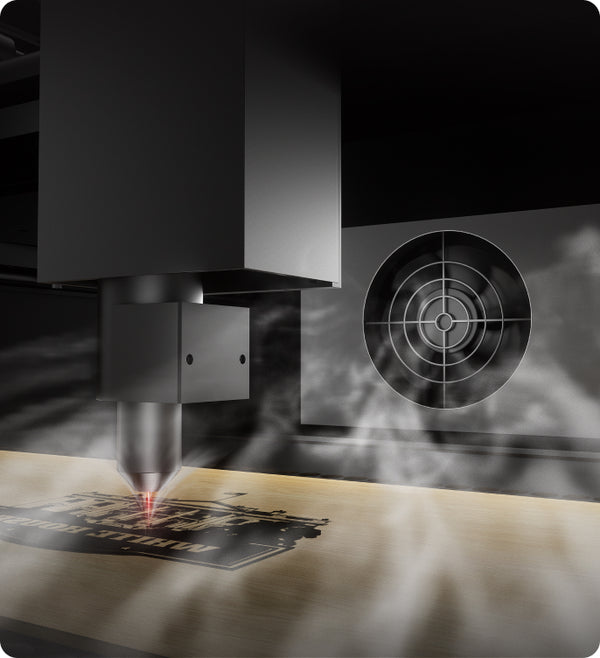

Boosts Airflow by 36%
for Rapid Smoke Removal
Holds 33% More Water
for Enhanced Cooling

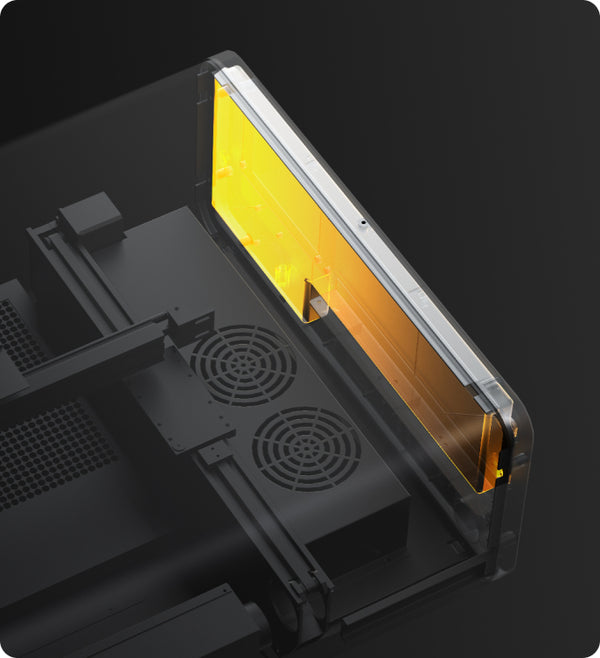

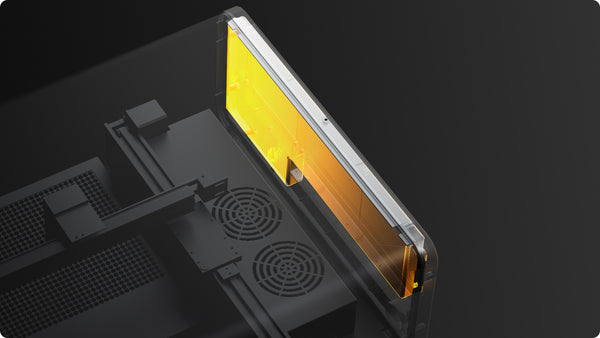

Built-in Exhaust Fans
for Effective Heat Release

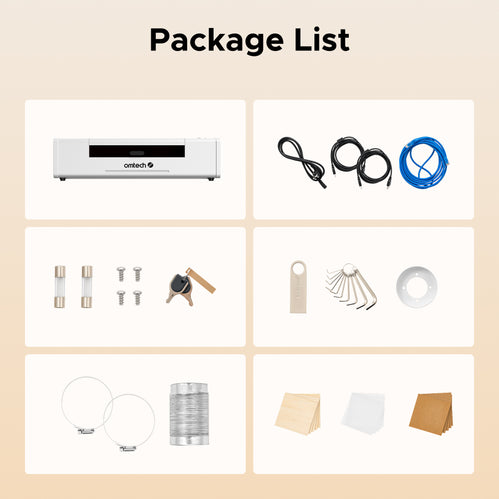

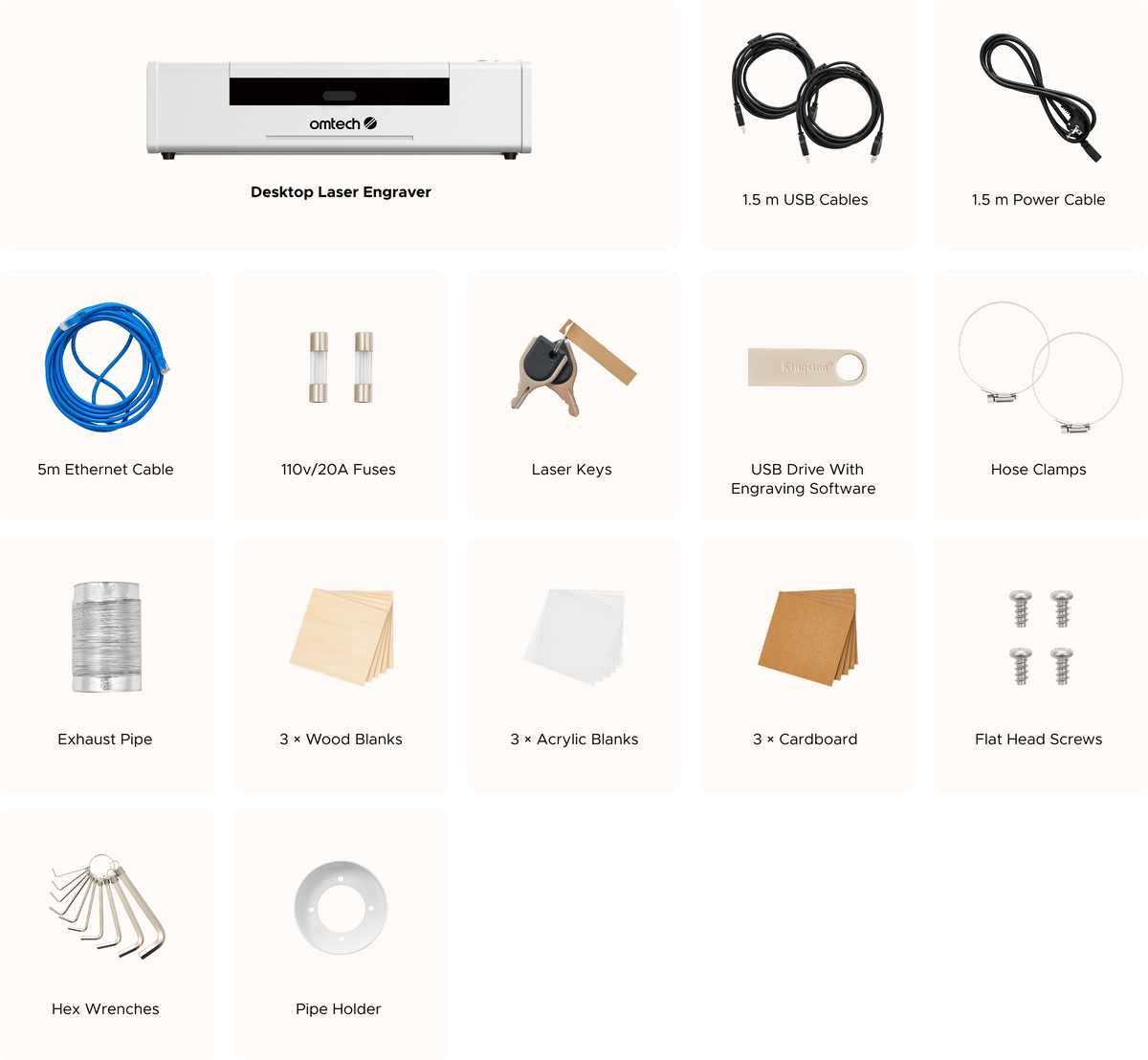

Package List
Rated Power: 55W
Dimensions: 41.1 x 22.2 x 11 in. (1045x565x280 mm)

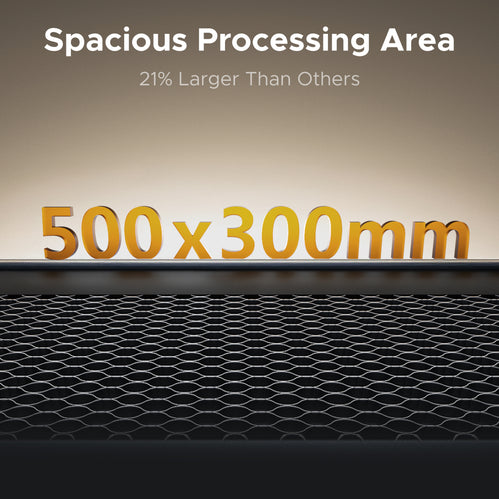

Standard Processing Area: 20.1 x 11.8 in. (500x300 mm)
Front & Rear Pass-Through: 15.8 x 0.3 in. (400x7 mm)
Max. Material Thickness: 0.7 in. (17 mm)
Max. Material Thickness (Without Workbed): 2 in. (51 mm)
Est. Laser Service Life: 11000 hr.
Max. Processing Speed: 19.6 ips (500 mm/s)
Max. Resolution: 1000 dpi
Mini. Letter Size: 0.04 x 0.04 in. (1x1 mm)
Water Chiller Capacity: 0.5 gal. (2 L)
Flow Rate: 142 gph (540 L/h)
Camera Resolution: 5MP
Accuracy: ±0.0008 in. (±0.02 mm)
Air Assist Port Diameter: 0.3 in. (8 mm)
Air Flow: 18.8 cfm (0.5 m³/min.)
Air Flow: 282.5/353.1 cfm (480/600 m³/h)
Data Transmission: Wifi, USB Cable, Ethernet Cable
Provided Operating Software: RDWorks

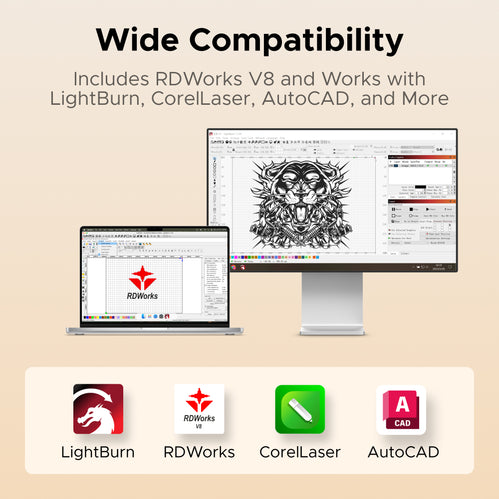

Compatible Operating Software: LightBurn, RDWorks
Certification: CE, FDA
Net Weight: 90.4 lb. (41 kg)
Warranty: 14 Months

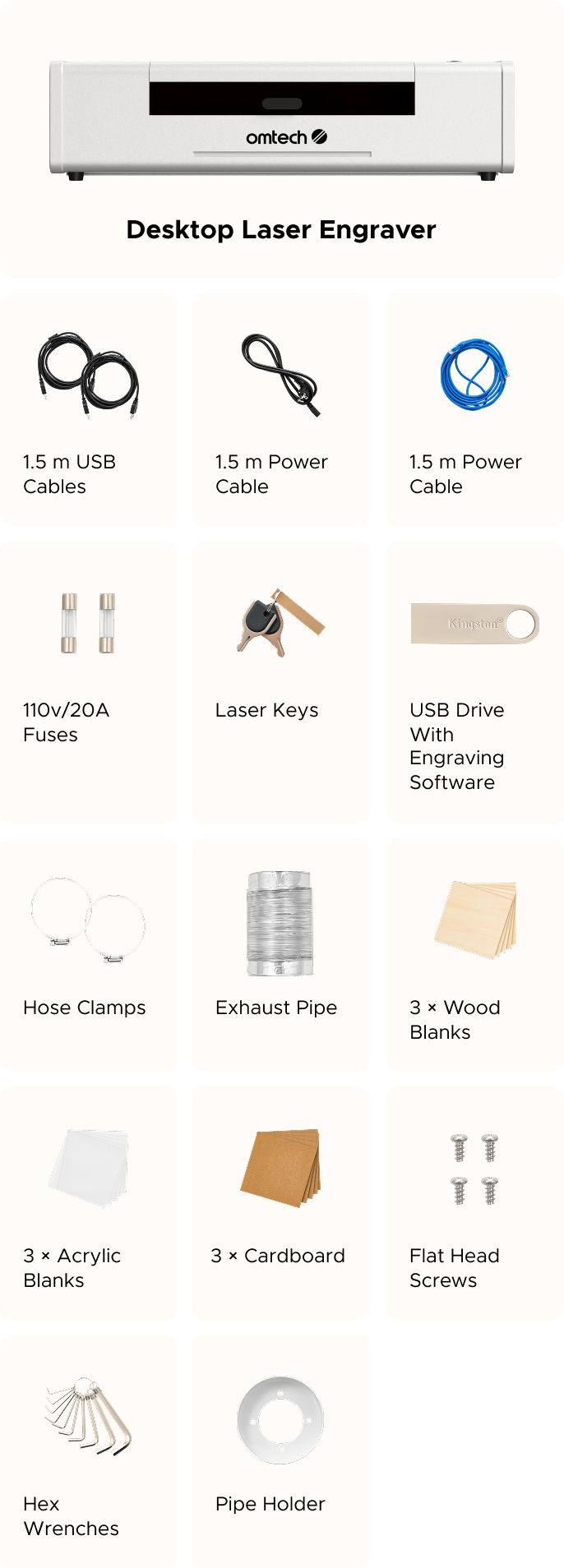

Desktop Laser Engraver x1
USB Cables x2
Power Cable x1
Hex Wrench Set x1
Fuses x2
Keys x2
USB Drive x1
Pipe Clamps x2
Exhaust Pipe x1
Wood Blanks x3
Acrylic Blanks x3
Cardboard Blanks x3
User Manual x1

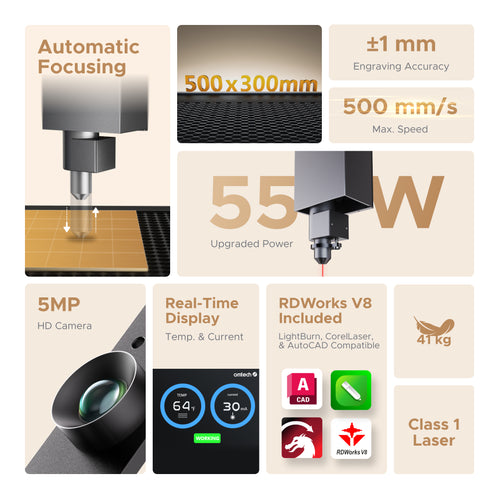

The all-new integrated touchscreen makes the Polar+ our smartest desktop laser engraver yet! With a powerful 55W laser delivering enhanced energy, you’ll achieve deeper and faster engraving results. The entire engraving process can now be managed from the touchscreen alone—no laptop required—drastically cutting creation time. And with a simple tap, the Polar+ automatically adjusts focus for optimal precision, bringing efficiency and ease to every project.
Both the Polar and the upgraded Polar+ are advanced CO2 laser engraving machines, offering exceptional value and performance. Here's how they compare:
- Enhanced Laser Power: The Polar+ features an upgraded 55W rated laser power, providing faster and deeper engraving capabilities compared to the original Polar.
- Touchscreen Convenience: Polar+ introduces a one-tap touchscreen for a more intuitive user experience, a step up from the manual motor focus on the Polar.
- Rapid Auto Focus: Unlike the Polar's motor focus, the Polar+ comes equipped with rapid auto focus, ensuring precision and speed for every project.
- Additional Features: The Polar+ maintains its affordability while adding advanced capabilities like power loss recovery and scorch-free engraving, minimizing downtime and maximizing quality.
Whether you choose the trusted Polar or the feature-rich Polar+, both deliver reliable performance tailored to your engraving needs.
The touchscreen offers an intuitive and easy-to-use interface, as it may involve fewer steps than using software on a laptop. Direct manipulation through touch can streamline the process.

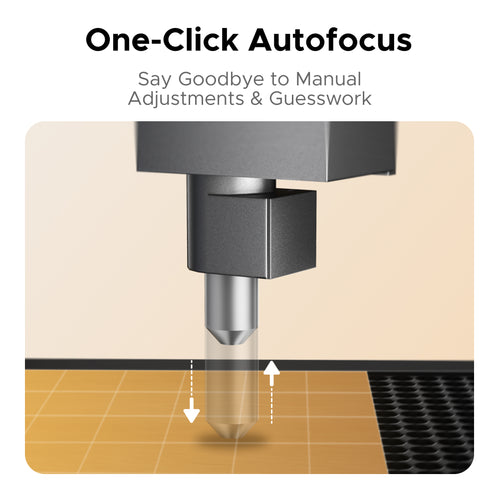

a. One-tap Auto Focus: Simply tap the focus button on the screen to start auto-focusing.
b. One-tap Positioning: Simply tap the position button on the screen to locate the position you want to start engraving.
c. One-tap Framing: Simply tap the frame button on the screen to automatically outline the size of the area you want to engrave.
d. Tap to move the laser head easier and more convenient.
Yes! You can engrave offline with a USB flash drive, simply plug in and select the file you want to engrave—no laptop needed, which is very convenient for those who need to engrave the same file repeatedly.
The OMTech Polar+ is specifically designed for laser hobbiests, makers, DIY enthusiasts, and small businesses. The convenience of operation provided by the touchscreen can help you unleash endless creativity and enhance your productivity!
Yes! When the Polar+ experiences a power outage or is accidentally disconnected, it automatically saves the engraving progress. Once power is restored, a dialog box will pop up on the touchscreen asking if you want to continue the previous engraving. Simply tap "Yes" and the laser head will automatically return to the last position and continue engraving.
Yes! The Polar+ comes with two rotary axes for different sizes to engrave cylindrical objects, so you do not need to purchase additional rotary axes separately.
With the 5MP camera, you can preview the design file on your object. Simply drag the design onto the object to preview and adjust the size of the engraving area, ensuring that the dimensions are appropriate. This feature is especially convenient when engraving smaller items like jewelry.
The OMTech Polar+ laser engraver comes with a 2-year general warranty, with a 1-year warranty specifically for the laser tube and laser power supply. This warranty covers the machine and its components, ensuring reliability and peace of mind for our customers.

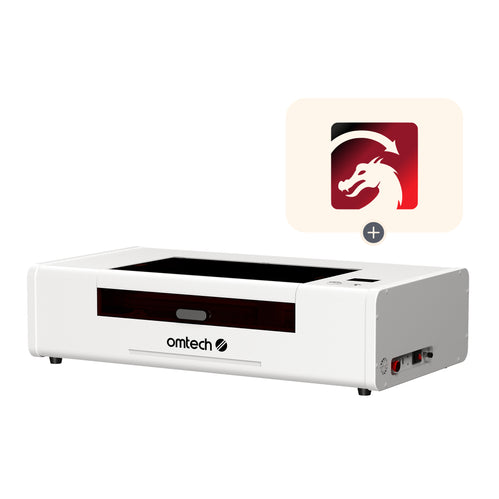

The OMTech Polar+ laser engraver is compatible with Lightburn. Get Lightburn here today!
