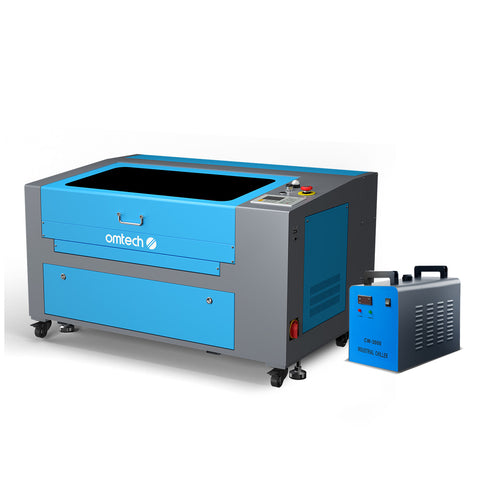

Explore the OMTech Turbo 646, a versatile 60W laser machine powered by a high-performance CO₂ tube. This 60W CO₂ laser engraving machine offers a spacious 600×400 mm work area, combined with honeycomb and aluminium blade tables for flexible material handling. With manual focus adjustment, it accommodates materials up to 230 mm in height, while delivering precision at 0.01 mm. The efficient water-cooled system ensures reliable operation and longer tube life. Built with robust safety features and compatibility with standard software, this CO₂ laser cutter is your go-to for top-tier cutting and engraving.
Recommended software:
LightBurn software
Manual Focus
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk
Increase your efficiency and achieve impressive engraving speeds with our 60W laser engraver. With a maximum engraving speed of 600 mm/s, our device enables fast and precise engravings on a wide range of materials.
With a product size of 114x78x64.5cm and a net weight of 85kg, this CO2 laser engraving machine boasts a processing area of 600x400mm and a loading area of 645x520mm, allowing for the processing of larger objects. Simultaneous engraving or cutting of multiple parts enables efficient mass production.
Easily adjust the height of the workbed or fit it with aluminum or honeycomb tables to accommodate a variety of projects. Enjoy the flexibility and convenience for all your laser engraving needs.
Rotary axis (sold separately) compatibility enables precise 3D engraving of round and cylindrical objects such as cups, bottles, and spheres, opening up creative design possibilities.
The honeycomb table provides precise support for small parts and enables reflection-free cuts on materials such as leather, paper, aluminum foil, and other soft substances. The aluminum slat table prevents reflections, offers ample space, and allows flexible adjustment of the slats. It is particularly suitable for processing acrylic glass, thick panels, and other hard materials.
Our laser engraving machines use safety relays of the highest safety level. The safety relays are certified by the world's largest testing organization, SGS, and comply with the ISO 13849-1:2023 standard. The safety architecture and performance level meet PL e with Cat. 4.
Our engraver includes an advanced water cooling system to efficiently dissipate heat from the laser tube, ensuring optimal performance and extending the machine's lifespan.
The built-in air assist efficiently removes smoke and dust during operation, protecting your laser lenses and reflective mirrors. It ensures clearer cuts and extends the life of your machine, providing enhanced performance and longevity with every use.
Our OMTech CO2 laser engraving machine emits a wavelength of 10600 nm with a measured radiation power of 3.42 W/m2, well below the Class 1 limit of 1000 W/m2 for invisible lasers. This confirms that our machine is safe for prolonged use without causing harm to eyes or skin, ensuring a secure working environment for users.
Thanks to its closed construction, locking system, emergency stop button, key switch, monitoring of water flow, and other safety devices, the OMTech Laser achieves Laser Class 1 for engraving on flat surfaces.

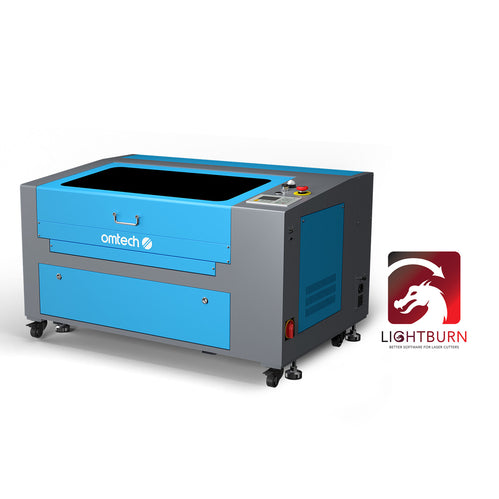

Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with enormous sizes of up to 256 MB. Compatible with the widely used LightBurn software (sold separately) as well as the free RDWorks. Allows you to upgrade to autofocus.
With a 75W AC motor running quietly at 2600 RPM, this exhaust fan delivers a continuous airflow of 9 m³/min, minimizing energy consumption while effectively maintaining a constant indoor air quality.The exhaust fan is included at no extra cost!
Power Supply: 220-240V, 50Hz
Max. Engraving Speed: 600 mm/s
Focus Adjustment: Manual
Certification: CE
Bistable Safety Relay: Cat.4 PLe (EN 13849-1)
Fire protection class of the PC cover: V-2
Product Dimensions (L×W×H): 114x78x64.5 cm
Package Dimensions (L×W×H): 124x86x83 cm
Net Weight: 85 kg
Processing Area (L×W): 600x400 mm
Loading Area (L×W): 645x520 mm
Max. Workpiece Height: 230 mm
Processing Tables: Honeycomb and Aluminum Blade Tables
Height Adjustment: Manual
Slats on Work Bed: 16
Laser Type: CO2
Laser Power: 60W
Processing Accuracy: 0.01 mm
Laser Precision: up to 1000 dpi
Laser Wavelength: 10.6 μm
Laser Safety Class: Class 1 (With the optional hatch, the laser machines become a laser safety class 4 device.)
Laser Tube Length: 1000 mm
Laser Tube Diameter: 50 mm
Laser Tube Lifespan: 1,000 hours (>70% power); 1,500 hours (40%–70% power); 2,000 hours (<40% power)
Laser Tube Cooling: Water Cooling
Exhaust Fan Airflow: 326 m³/hr.
Air Compressor Airflow: 30 L/min.
Laser Head Airflow: 15 L/min.
Included Operating Software: RDWorks (Windows)
Compatible Operating Software: CorelLaser, LightBurn (Windows, MacOS), CorelDRAW, AutoCAD
Compatible Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga
Graphic Operating Modes: Raster, Vector, or Combined Modes
Connection/Transmission: USB Flash Drive, USB Cable, Ethernet Cable
2-Year Warranty on Parts
6-Month Warranty on Laser Tube and Power Supply
1 × 60W Laser Engraving Machine
1 × Water Pump
2 × Water Pipes
1 × Exhaust Pipe
1 × USB Flash Drive
1 × USB Cable
1 × Ethernet Cable
1 × Wrench Set
2 × Laser Keys
2 × Access Keys
1 × User Manual
Download PDF
| Engraving | Cutting | |
|---|---|---|
Wood
|
|
|
Acrylic
|
|
|
Plastic
|
|
|
MDF
|
|
|
Leather
|
|
|
Paper
|
|
|
Cardboard
|
|
|
Stone
|
|
|
Textile
|
|
|
| Engraving | Cutting | |
|---|---|---|
Rubber
|
|
|
Foam
|
|
|
Glass
|
|
|
Metal Coating
|
|
|
Stainless Steel
|
|
|
Aluminum
|
|
|
Titanium
|
|
|
Silver
|
|
|
Gold
|
|
|
| Engraving | Cutting | |
|---|---|---|
Wood
|
|
|
Acrylic
|
|
|
Plastic
|
|
|
MDF
|
|
|
Leather
|
|
|
Paper
|
|
|
Cardboard
|
|
|
Stone
|
|
|
Textile
|
|
|
Rubber
|
|
|
Foam
|
|
|
Glass
|
|
|
Metal Coating
|
|
|
Stainless Steel
|
|
|
Aluminum
|
|
|
Titanium
|
|
|
Silver
|
|
|
Gold
|
|
|
The OMTech 60W CO2 laser cutter can engrave and cut a variety of non-metallic materials such as wood, acrylic, leather, glass, and certain plastics.
This laser machine offers a processing accuracy of 0.01 mm and precision up to 1000 dpi, ensuring detailed and high-quality engraving for intricate designs.
Yes, the 60W CO2 laser cutter features manual focus adjustment, allowing you to set the optimal height for materials up to 230 mm thick.
The machine provides a processing area of 600×400 mm with honeycomb and aluminum blade tables, giving you flexibility for various project sizes.
The 60W CO2 laser machine uses a water-cooled system to maintain optimal tube temperature. Proper water maintenance is essential for extending the laser tube lifespan, which ranges from 1,000 to 2,000 hours depending on power settings.
The OMTech turbo 646 features a bistable safety relay (Cat.4 PLe) and a fire-resistant PC cover (V-2). With the optional hatch, the device is upgraded from Class 1 to a Class 4 laser safety machine.
