100W CO2 Laser Cutter and Engraver with 1000x600mm Engraving Area and Autofocus | Max-1060R
Free shipping within UK mainland
Free shipping within UK mainland
Couldn't load pickup availability

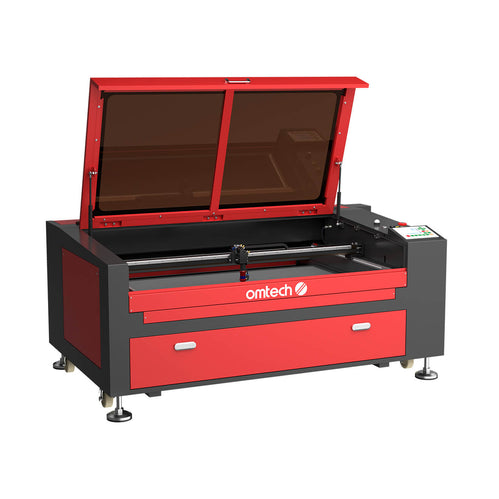

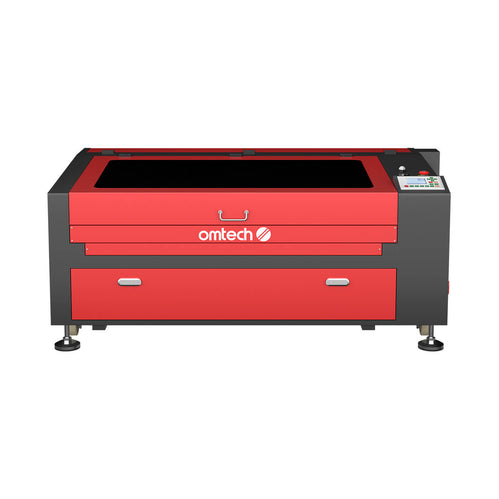

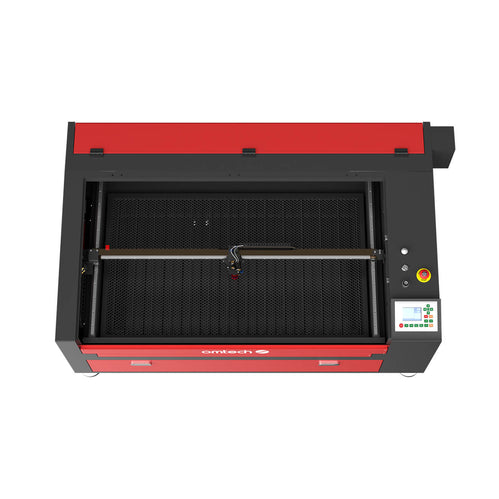

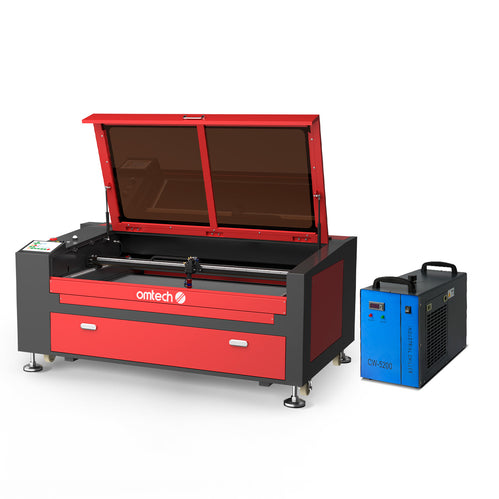

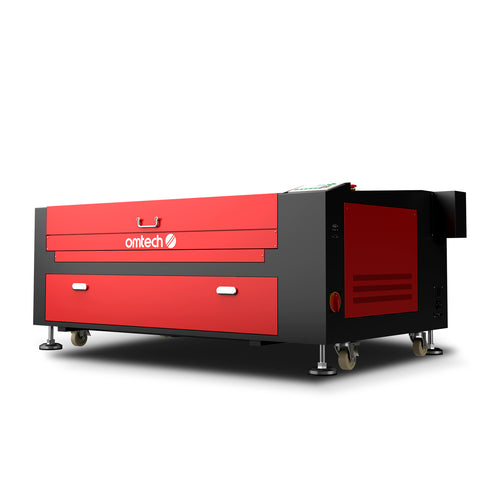

Meet the OMTech Max 1060R, a powerful 100W laser machine crafted for business and precision work. This 100W CO₂ laser machine features a spacious 1000 × 600 mm processing area and dual worktables suited for both honeycomb and aluminium surfaces. With autofocus height adjustment and a water-cooled tube built for up to 12,000 hours, it delivers incredible cutting and engraving performance. The robust design, high repeatability, and excellent safety make it an ideal large laser engraving machine for professionals looking to scale their operations.
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk
Have questions before you buy?
Schedule a free 30-minute one-on-one call with a product expert to discuss your needs and choose with confidence.
Book your consultation

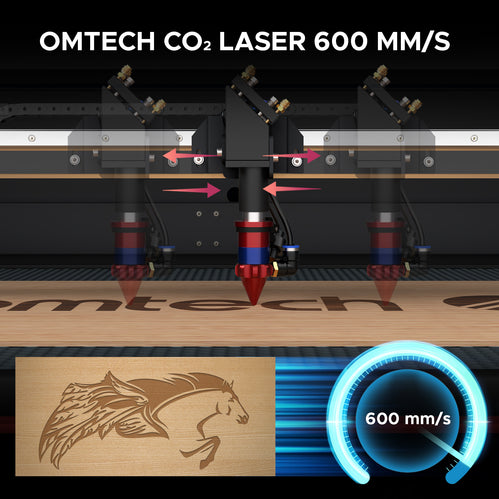

Increase your efficiency and achieve impressive engraving speeds with our 100W laser engraver. With a maximum engraving speed of 600 mm/s, our device enables fast and precise engravings on a wide range of materials.

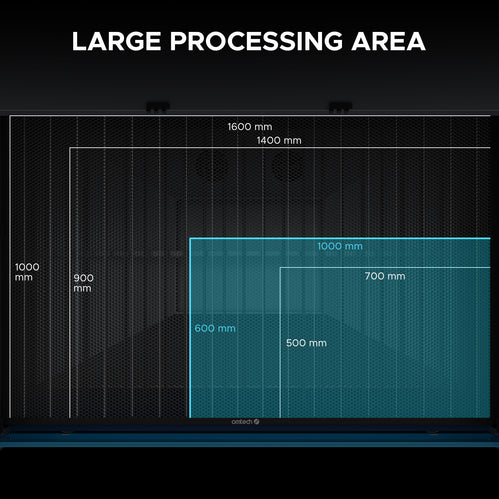

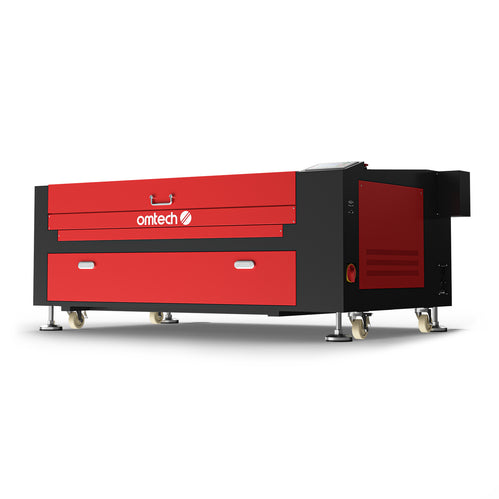

With a product size of 154x95x66cm and a net weight of 156kg, this CO2 laser engraving machine boasts a processing area of 1000x600mm and a loading area of 1125x665mm, allowing for the processing of larger objects. Simultaneous engraving or cutting of multiple parts enables efficient mass production.
No more tedious manual adjustments or trial and error. You can easily focus the laser at the push of a button thanks to the motorized height-adjustable processing tables.

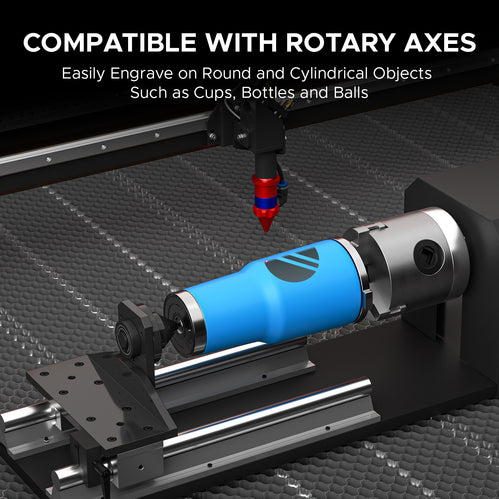

Rotary axis (sold separately) compatibility enables precise 3D engraving of round and cylindrical objects such as cups, bottles, and spheres, opening up creative design possibilities.

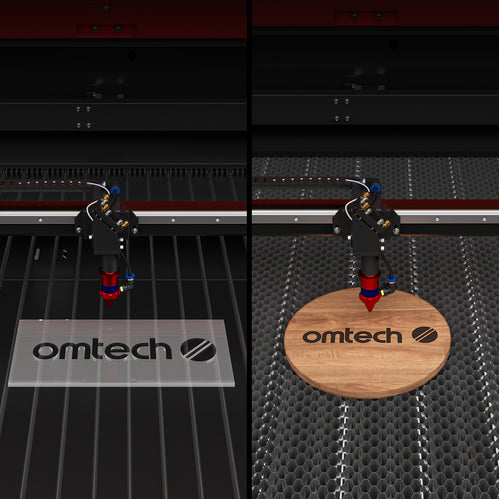

The honeycomb table provides precise support for small parts and enables reflection-free cuts on materials such as leather, paper, aluminum foil, and other soft substances. The aluminum slat table prevents reflections, offers ample space, and allows flexible adjustment of the slats. It is particularly suitable for processing acrylic glass, thick panels, and other hard materials.
Our OMTech CO2 laser engraving machine emits a wavelength of 10600 nm with a measured radiation power of 3.42 W/m2, well below the Class 1 limit of 1000 W/m2 for invisible lasers. This confirms that our machine is safe for prolonged use without causing harm to eyes or skin, ensuring a secure working environment for users.

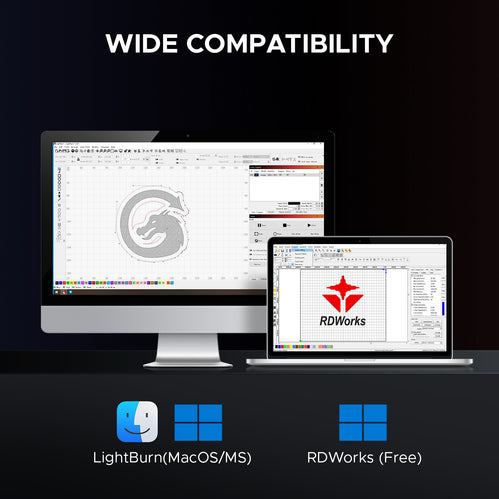

Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with enormous sizes of up to 256 MB. Compatibility with popular LightBurn software (sold separately) and free RDWorks
Our laser engraving machines use safety relays of the highest safety level. The safety relays are certified by the world's largest testing organization, SGS, and comply with the ISO 13849-1:2023 standard. The safety architecture and performance level meet PL e with Cat. 4.
Our engraver includes an advanced water cooling system to efficiently dissipate heat from the laser tube, ensuring optimal performance and extending the machine's lifespan.
The built-in air assist efficiently removes smoke and dust during operation, protecting your laser lenses and reflective mirrors. It ensures clearer cuts and extends the life of your machine, providing enhanced performance and longevity with every use.

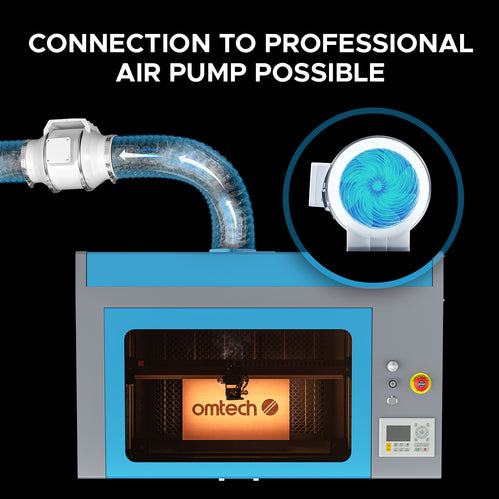

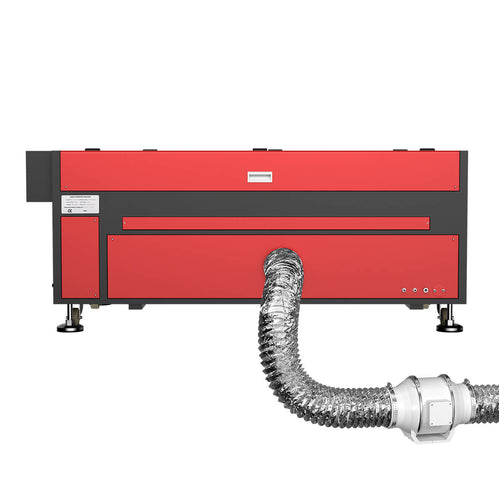

With a 75W AC motor running quietly at 2600 RPM, this exhaust fan delivers a continuous airflow of 9 m³/min, minimizing energy consumption while effectively maintaining a constant indoor air quality.The exhaust fan is included at no extra cost!

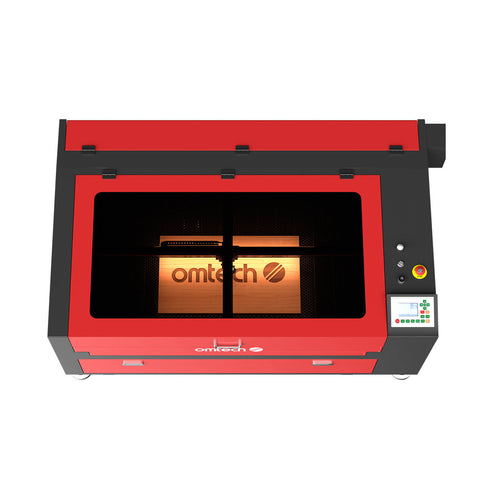

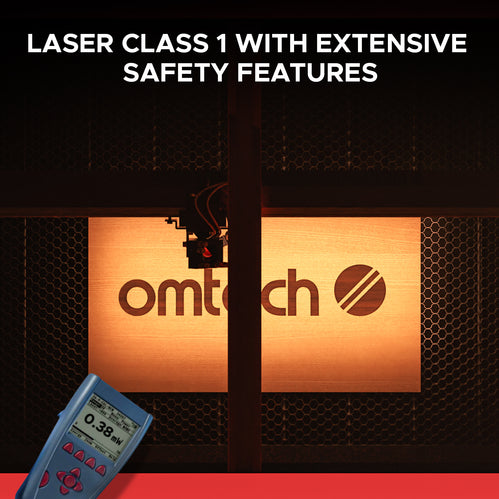

Thanks to its closed construction, locking system, emergency stop button, key switch, monitoring of water flow, and other safety devices, the OMTech Laser achieves Laser Class 1 for engraving on flat surfaces.
Power Supply: 220-240V, 50Hz
Max. Engraving Speed: 600 mm/s
Focus Adjustment: Autofocus
Fire Protection Class of the PC Cover: V-2
Certification: CE
Product Dimensions (L×W×H): 154x95x66 cm
Package Dimensions (L×W×H): 174x112x93 cm
Net Weight: 156 kg
Processing Area (L×W): 1000x600 mm
Loading Area (L×W): 1125x665 mm
Max. Workpiece Height: 120 mm
Processing Tables: Honeycomb and Aluminum Blade Tables
Height Adjustment: Automatic
Laser Type: CO2
Laser Power: 100W
Processing Accuracy: 0.01 mm
Laser Precision: up to 1000 dpi
Laser Wavelength: 10.6 μm
Laser Safety Class: Class 1 (With the optional pass-through, the laser machine becomes a Class 4 laser safety device)
Laser Tube Length: 1450 mm
Laser Tube Diameter: 60 mm
Laser Tube Lifespan: 8,000 hours (>70% power); 10,000 hours (40%–70% power); 12,000 hours (<40% power)
Laser Tube Cooling: Water Cooling
Exhaust Fan Airflow: 326 m³/hr.
Air Compressor Airflow: 30 L/min.
Laser Head Airflow: 15 L/min.
Included Operating Software: RDWorks (Windows)
Compatible Operating Software: CorelLaser, LightBurn (Windows, MacOS), CorelDRAW, AutoCAD
Compatible Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga
Graphic Operating Modes: Raster, Vector, or Combined Modes
Connection/Transmission: USB Flash Drive, USB Cable, Ethernet Cable
2-Year Warranty on Parts
6-Month Warranty on Laser Tube and Power Supply
1 × 100W Laser Engraving Machine
1 × Water Pump
2 × Water Pipes
1 × Exhaust Pipe
1 × USB Flash Drive
1 × USB Cable
1 × Ethernet Cable
1 × Wrench Set
2 × Laser Keys
2 × Access Keys
1 × User Manual
Download PDF
| Engraving | Cutting | |
|---|---|---|
Wood
|
|
|
Acrylic
|
|
|
Plastic
|
|
|
MDF
|
|
|
Leather
|
|
|
Paper
|
|
|
Cardboard
|
|
|
Stone
|
|
|
Textile
|
|
|
| Engraving | Cutting | |
|---|---|---|
Rubber
|
|
|
Foam
|
|
|
Glass
|
|
|
Metal Coating
|
|
|
Stainless Steel
|
|
|
Aluminum
|
|
|
Titanium
|
|
|
Silver
|
|
|
Gold
|
|
|
| Engraving | Cutting | |
|---|---|---|
Wood
|
|
|
Acrylic
|
|
|
Plastic
|
|
|
MDF
|
|
|
Leather
|
|
|
Paper
|
|
|
Cardboard
|
|
|
Stone
|
|
|
Textile
|
|
|
Rubber
|
|
|
Foam
|
|
|
Glass
|
|
|
Metal Coating
|
|
|
Stainless Steel
|
|
|
Aluminum
|
|
|
Titanium
|
|
|
Silver
|
|
|
Gold
|
|
|
This 100W CO₂ laser machine is ideal for cutting and engraving wood, acrylic, leather, plastics, rubber, and more.
Yes, the OMTech Max 1060R is designed specifically as a laser machine for business, offering high speed (up to 600 mm/s), 0.01 mm accuracy, and long-term reliability with a laser tube lifespan of up to 12,000 hours.
Yes, this model includes an automatic height adjustment system that enables effortless, precise focusing for consistent engraving performance.
The machine is CE certified and operates as a Class 1 laser device with its enclosure. With the optional pass-through installed, it becomes a Class 4 device. It also features a V-2 fire-rated cover and a fully enclosed design for safe operation.
It uses water cooling for the CO₂ laser tube and includes built-in airflow components such as an exhaust fan, air compressor, and air-assist at the laser head to maintain stable, safe operation.
The 100W laser tube offers approximately 8,000–12,000 hours of service life depending on operating power levels, making it a dependable long-term solution for busy workshops.
