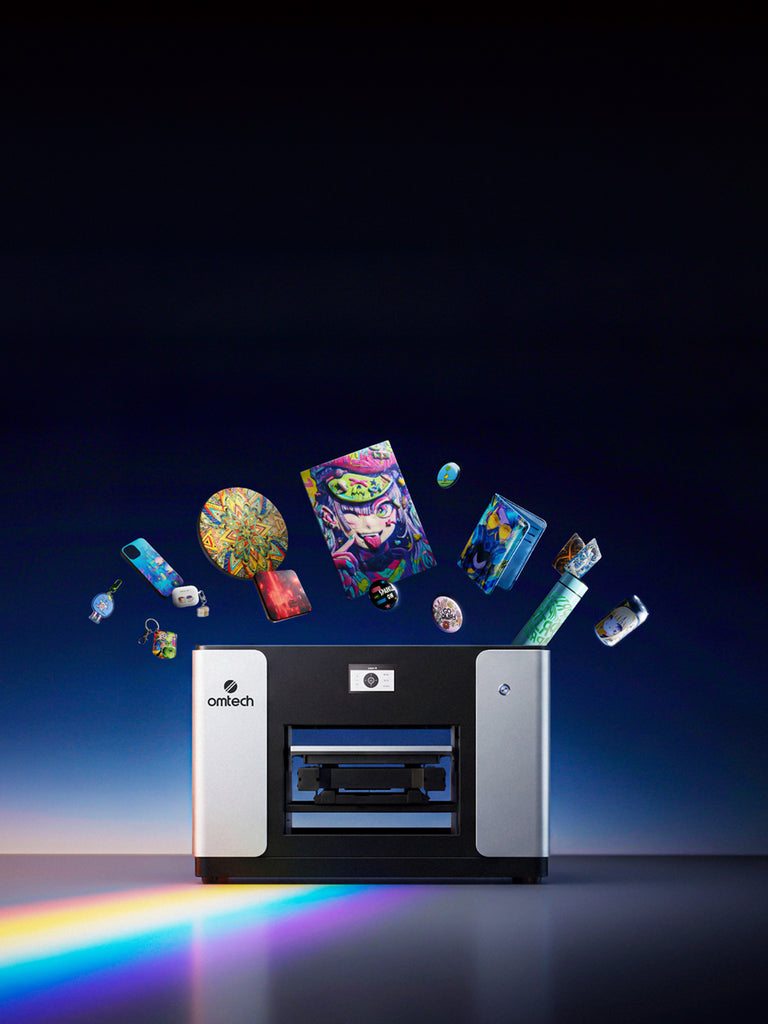

OMTech Spectra A3+ Flatbed UV Printer — Dual Printhead
Regular price
£4,299.98
Sale price
£4,299.98
Regular price
£5,299.00
Save£999.02
VAT included
Event Countdown
0
Days
0
Hours
0
Mins
0
Secs
⏳Ships Today | Delivery In 5–8 Days.
Quantity
Now it's time for color!
Brilliant colors, precise printing results, nearly unlimited possibilities
More freedom in format

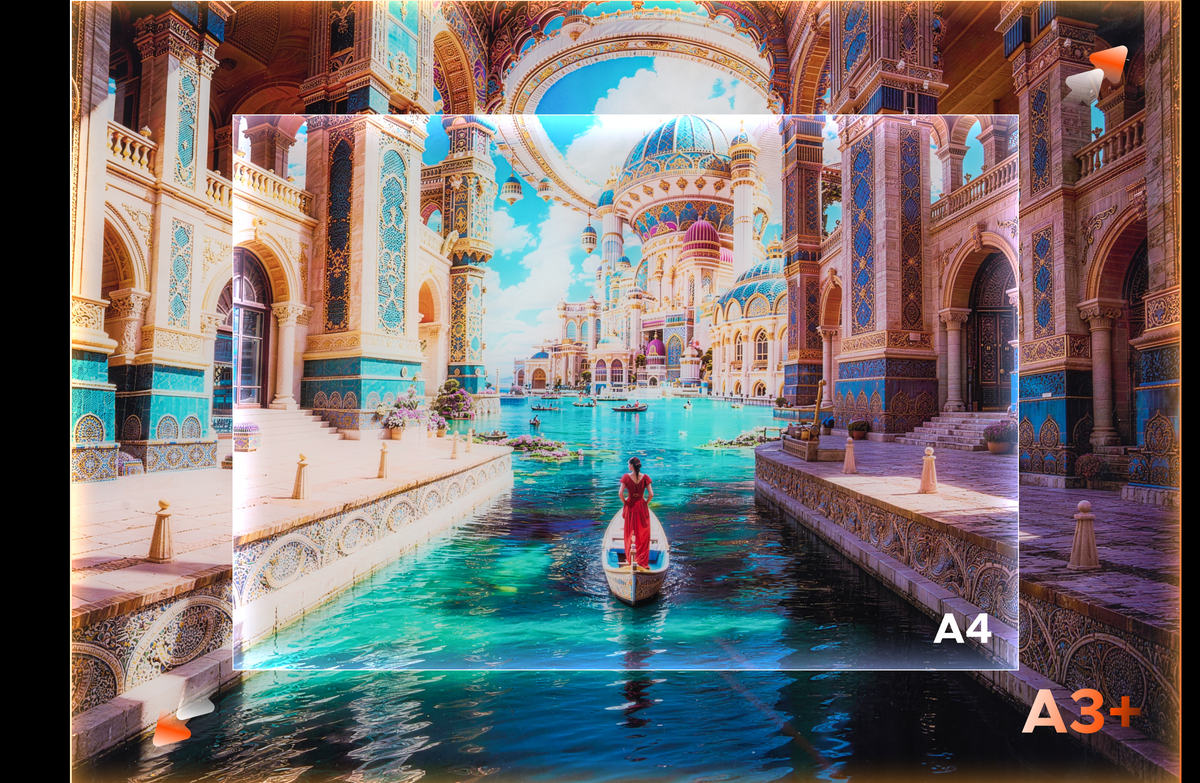

With an enlarged print area of 350 × 450 mm in true A3+ format, you can tackle creative projects with even greater flexibility.
Break Free from Size Limits
Print on an expanded area (13.78" × 17.72") and unlock more creative space beyond standard A3.
Print What You Imagine
99% True Color Accuracy + One-Click Gloss and Embossing for Depth and Vibrancy.
99 % precise color reproduction
For brilliant, true-to-life colours, so your designs look exactly as they were intended.
Impressive 3D effects up to 5 mm
With layer thicknesses of up to 5 mm, you can create striking 3D embossed effects with a noticeable sense of depth and texture.
High-precision printing at 1,440 × 720 dpi
The Epson F1080 printhead technology delivers detailed, precise results and consistently high print quality.
Partial glossy finish at the touch of a button
Use targeted gloss effects and high-quality finishes to make your designs look even more exclusive and professional.
More success in less time

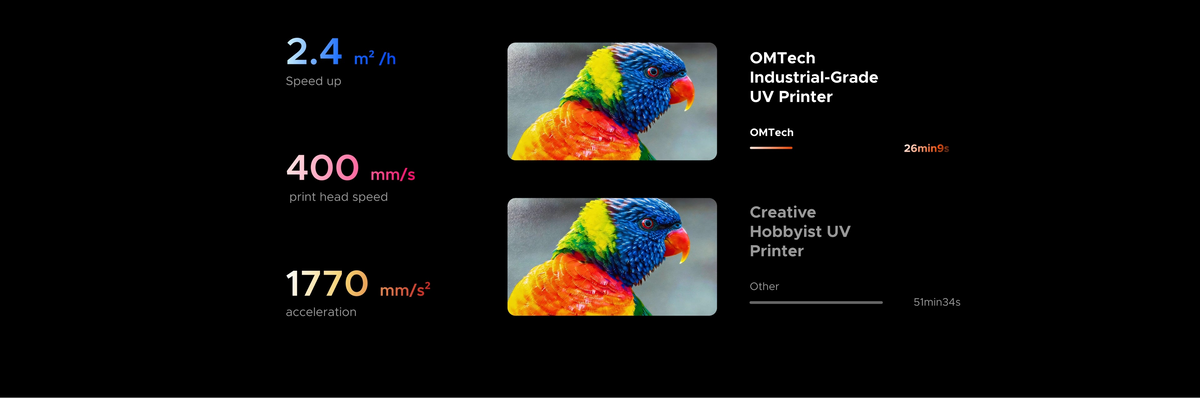

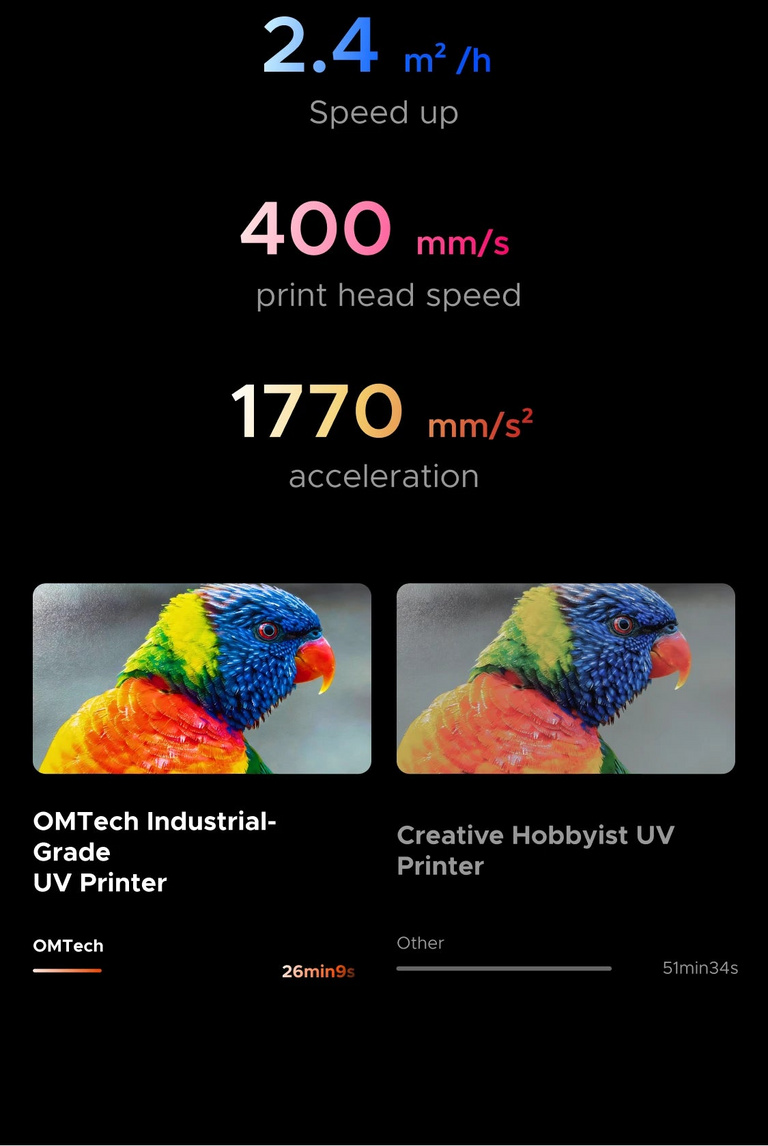

Print speeds of up to 2.4 m²/h and a print head speed of 400 mm/s enable fast processing and high-quality results with great efficiency.
Professional ink. Maximum flexibility.
Maximum freedom in ink choice
Up to 75 % lower ink costs
GREENGUARD certified
Maximum freedom in ink choice
The open ink system allows for use without manufacturer-specific cartridges, whilst high-performance industrial inks ensure strong adhesion and high durability.
Up to 75 % lower ink costs
Compared to many other UV inks, you can save up to 75% whilst still enjoying industrial-grade ink performance with strong adhesion and high durability.

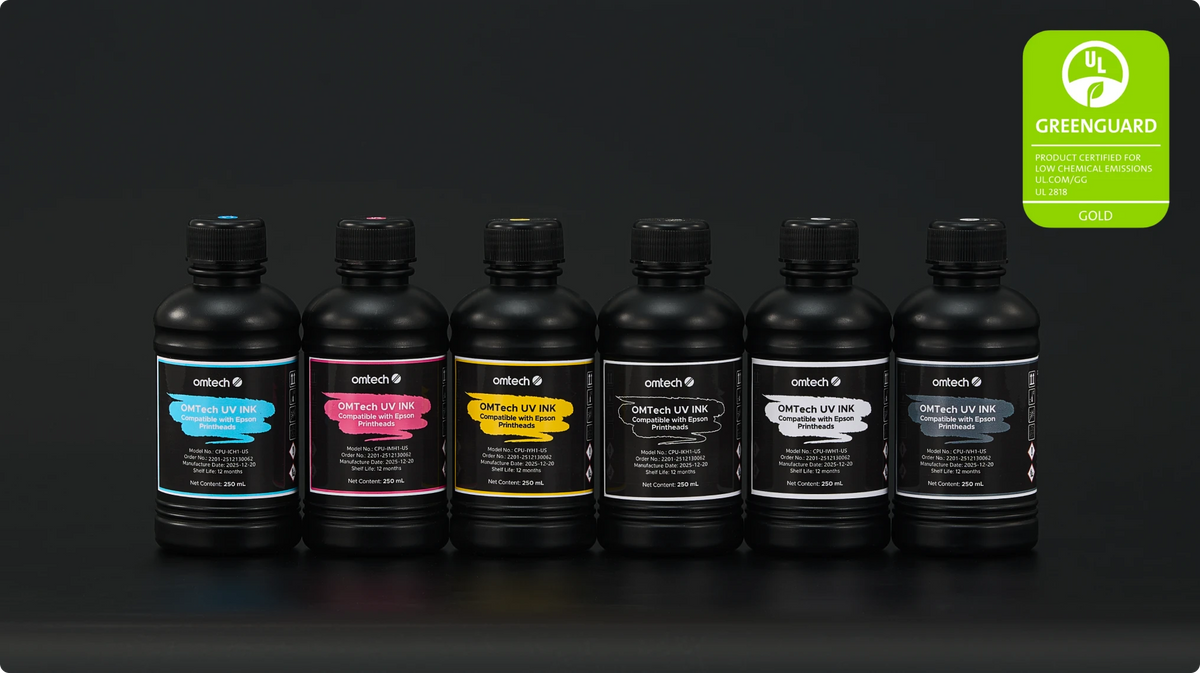

GREENGUARD certified
Safer printing with GREENGUARD Gold-certified inks: Low-VOC inks and an efficient air purification system help to create a safe and clean working environment.
An ecosystem for faster return on investment
Thanks to lower printhead and ink costs, as well as seamless integration with laser systems, you can boost efficiency and profitability in less time.
Over 300 materials. Countless product possibilities.

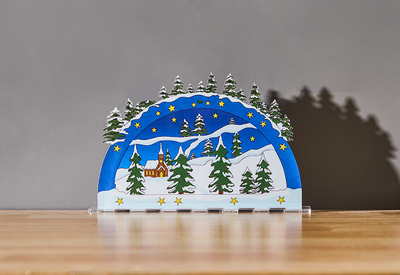

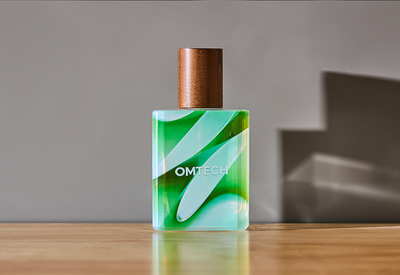

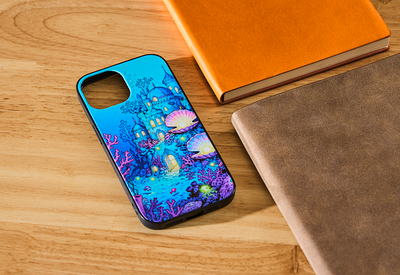

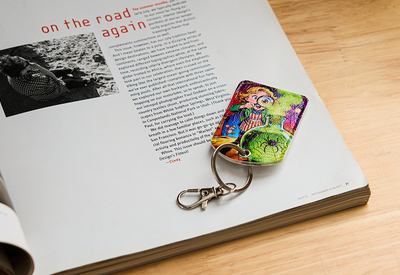

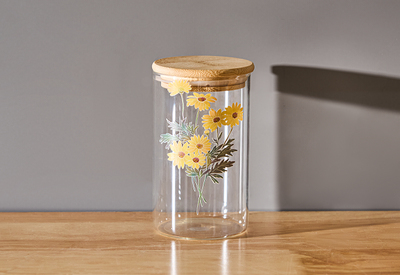

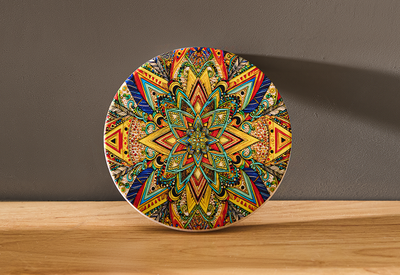

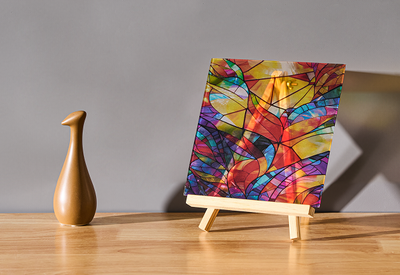

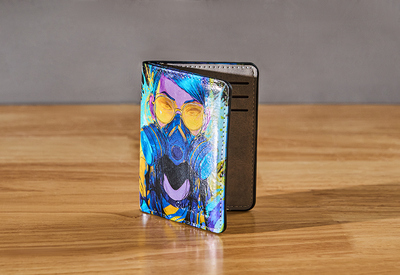

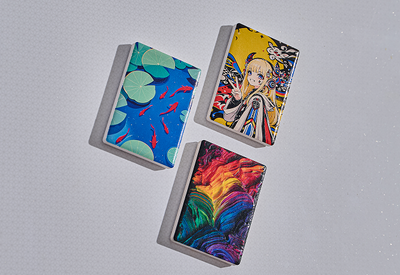

Suitable for printing on acrylic, plastic, wood, leather, metal, glass, ceramics and much more – for maximum versatility with just one system.
Expand your design options to include other surfaces
The rotary attachment enables printing on round, curved and unusually shaped objects, offering even greater versatility.
You create. We ensure greater safety.
To ensure you can work with peace of mind, we use low-VOC, more environmentally friendly inks to create a more pleasant working environment.

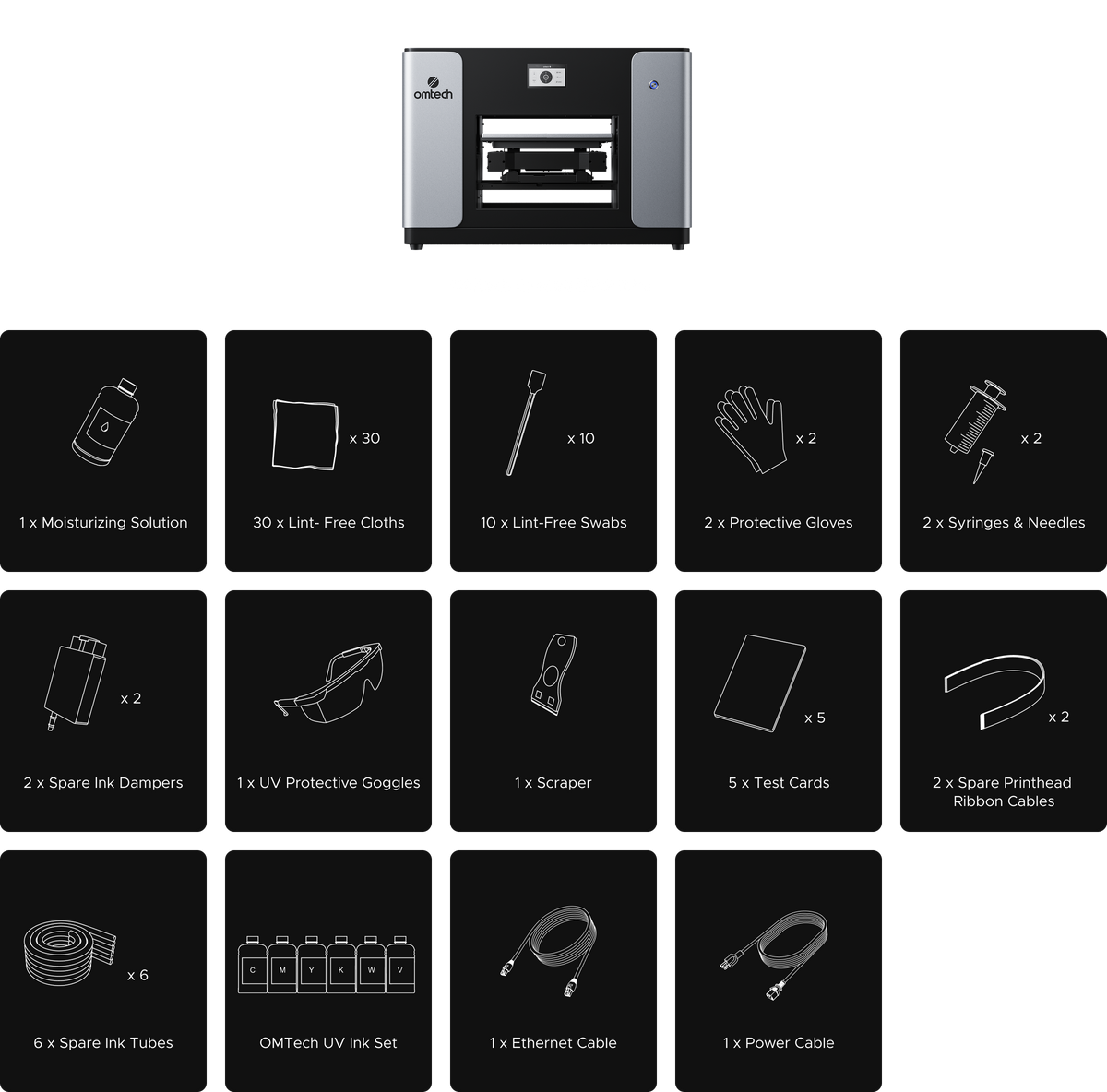

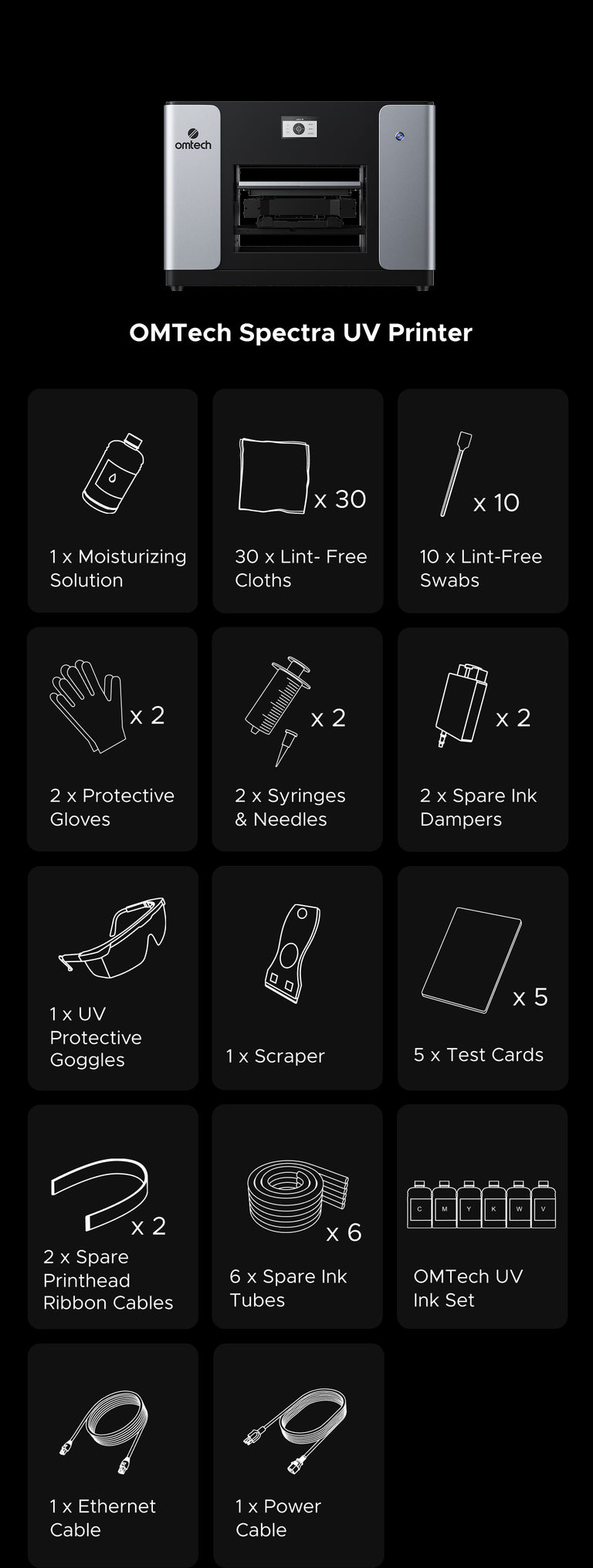

Scope of delivery
Technical specifications
General & Construction
Colour: Matt black, matt silver
Product dimensions (L × W × H): 780 × 575 × 560 mm
Net weight: 69.4 kg
Display: 4.3-inch colour touchscreen
Materials: sheet metal + acrylic
Printing platform
Print area: 350 × 450 mm
Print bed type: Aluminium honeycomb vacuum table with guide rail
Max. media height: 140 mm
Level detection: Automatic IR level detection
Print head & ink system
Printer head model: F1080
Number of print heads: 2
Channels: 6
Nozzles per print head: 1,080
Sampling rate: 46 kHz
Minimum droplet size: 4.5 pL
Tintenkonfiguration: CMYKWW + Varnish/Lack
Ink supply: Automatic ink supply
Tank capacity: 250 ml
Ink level warning: Yes
Ink consumption: 20 ml/m²
Ink refill: One-click refill via the touchscreen
Printhead maintenance: Automatic cleaning + injection of humidifying fluid
Anti-settling system for white ink: white ink circulation + stirring function
UV curing & power supply
UV lamp: 100 W × 2
Input voltage: AC 110/220 V ±10 %, 50/60 Hz
Power consumption: 280 W, dual-head version: 380 W
Power consumption in sleep mode: 15 W
Software, connectivity, environment & certifications
Controller: Hoson N10
Connectivity / Data transmission: Ethernet
Software included: OMTech Print
Supported file formats: TIFF, JPG, JPEG, PNG, PDF, EPS
Operating temperature: 15–40 °C
Operating humidity: 40–60% RH, non-condensing
Air purification: 24 V fan, 0.91 A, 2,600 rpm, 6.09 CFM, with replaceable activated carbon filter
Certifications: CE, FCC, RoHS, TÜV
Packaging dimensions (L × W × H): 900 × 635 × 730 mm
Packaging material: Plywood box with white veneer
Gross weight including packaging: 96 kg
