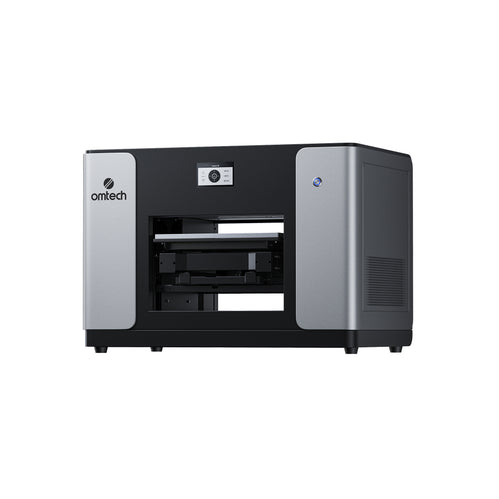

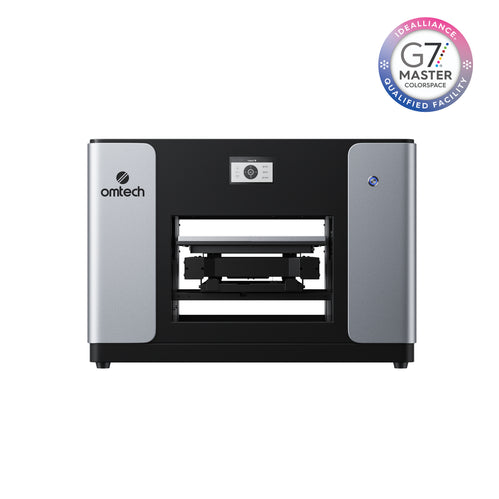

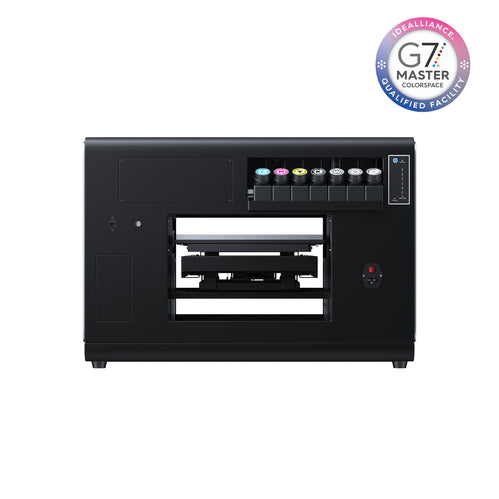

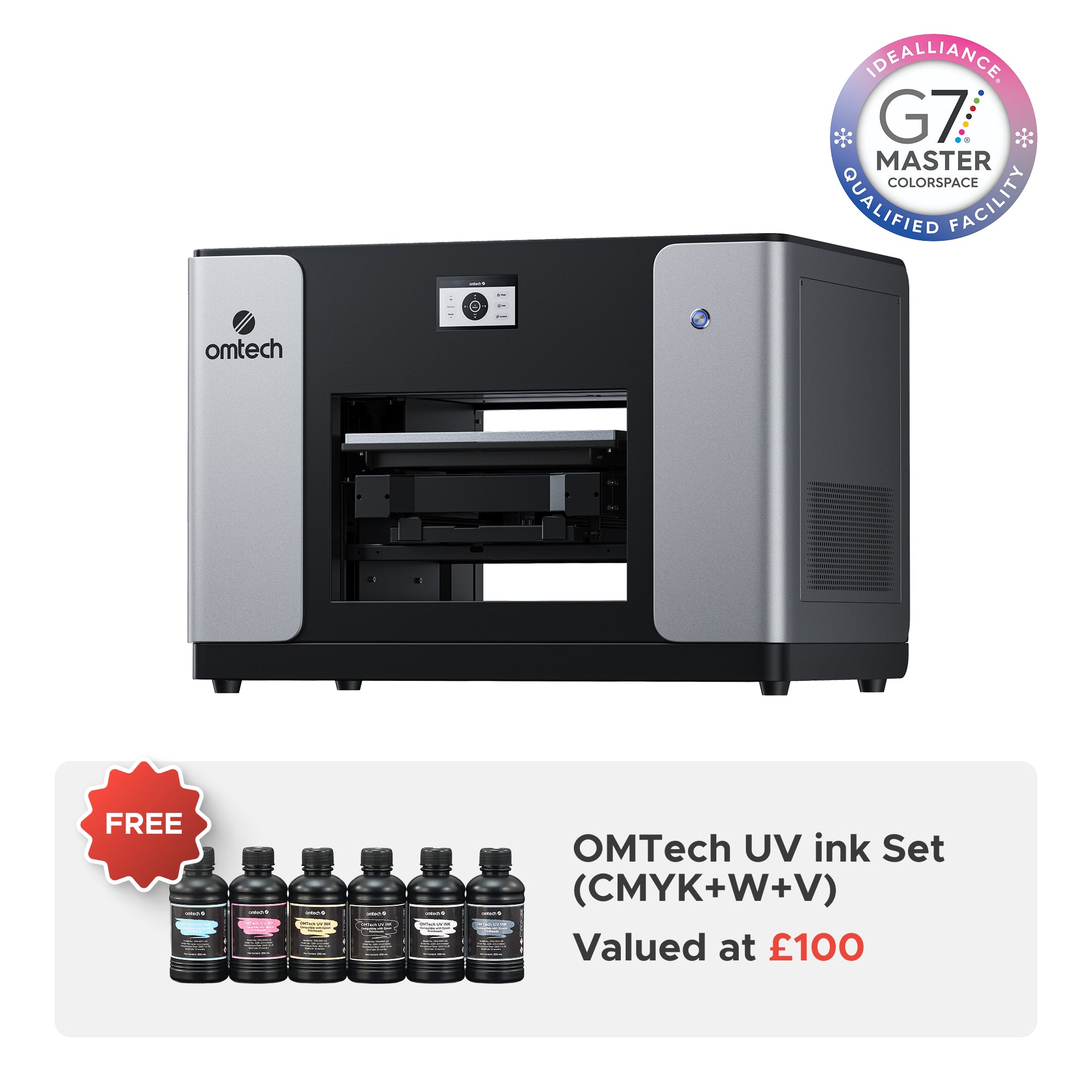

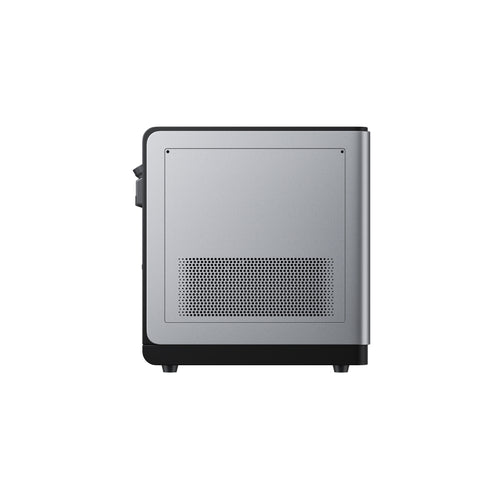

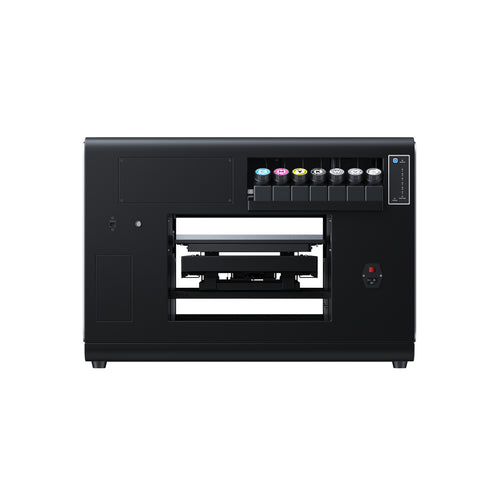

OMTech Spectra A3+ Flatbed UV Printer — Dual Printhead
Colour: Matt black, matt silver
Product dimensions (L × W × H): 780 × 575 × 560 mm
Net weight: 69.4 kg
Display: 4.3-inch colour touchscreen
Materials: sheet metal + acrylic
Print area: 350 × 450 mm

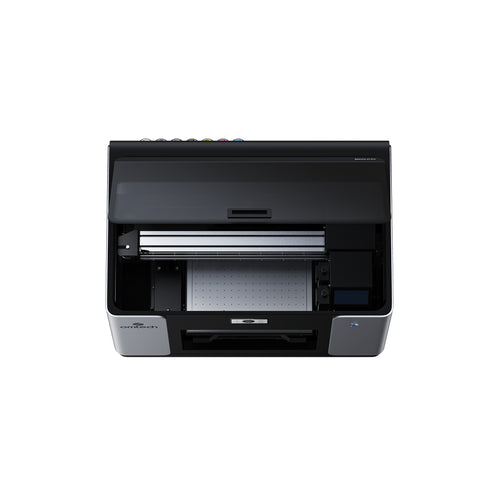

Print bed type: Aluminium honeycomb vacuum table with guide rail
Max. media height: 140 mm
Level detection: Automatic IR level detection
Printer head model: F1080
Number of print heads: 2
Channels: 6
Nozzles per print head: 1,080
Sampling rate: 46 kHz
Minimum droplet size: 4.5 pL
Tintenkonfiguration: CMYKWW + Varnish/Lack
Ink supply: Automatic ink supply
Tank capacity: 250 ml
Ink level warning: Yes
Ink consumption: 20 ml/m²
Ink refill: One-click refill via the touchscreen

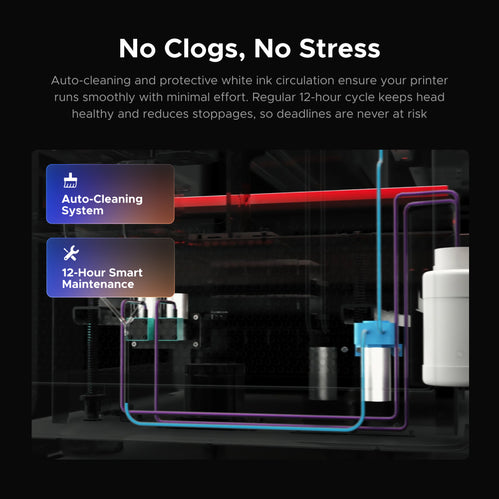

Printhead maintenance: Automatic cleaning + injection of humidifying fluid
Anti-settling system for white ink: white ink circulation + stirring function
UV lamp: 100 W × 2
Input voltage: AC 110/220 V ±10 %, 50/60 Hz
Power consumption: 280 W, dual-head version: 380 W
Power consumption in sleep mode: 15 W
Controller: Hoson N10
Connectivity / Data transmission: Ethernet

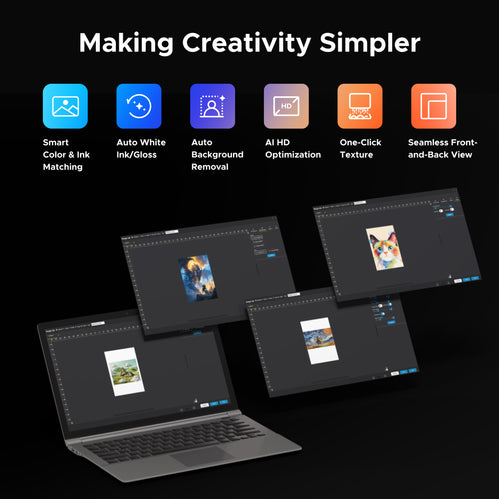

Software included: OMTech Print
Supported file formats: TIFF, JPG, JPEG, PNG, PDF, EPS
Operating temperature: 15–40 °C
Operating humidity: 40–60% RH, non-condensing
Air purification: 24 V fan, 0.91 A, 2,600 rpm, 6.09 CFM, with replaceable activated carbon filter
Certifications: CE, FCC, RoHS, TÜV
Packaging dimensions (L × W × H): 900 × 635 × 730 mm
Packaging material: Plywood box with white veneer
Gross weight including packaging: 96 kg
