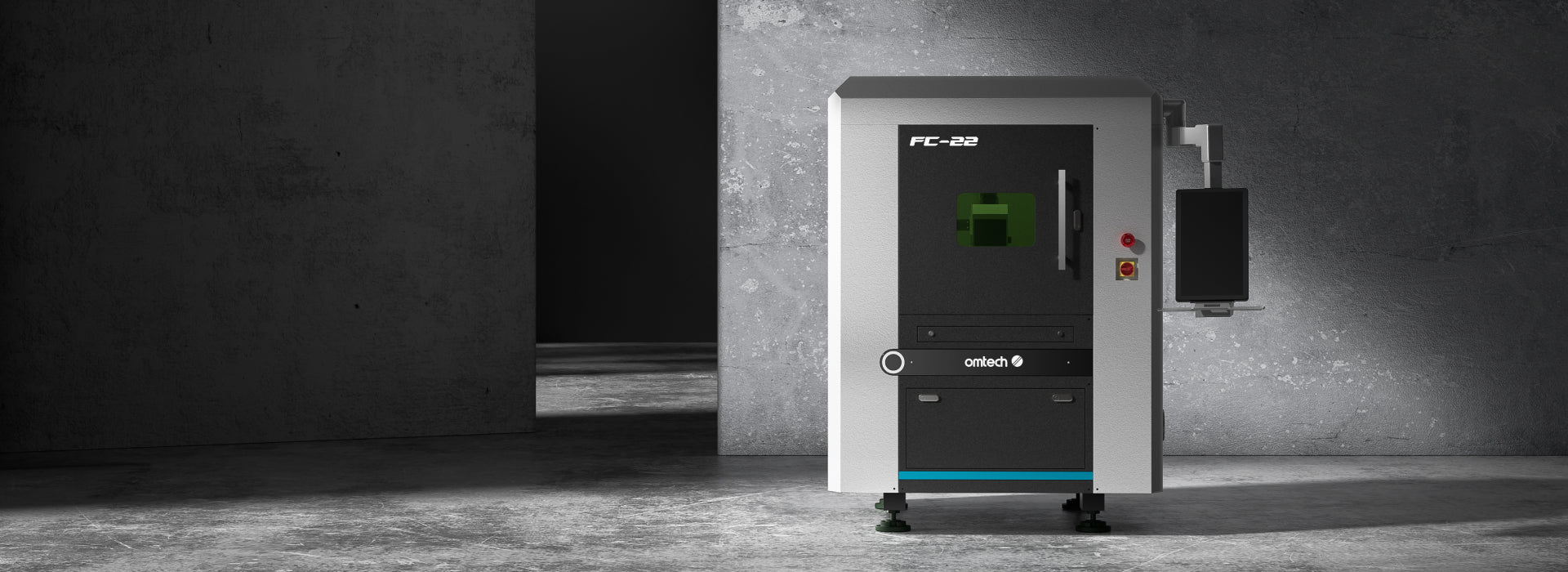

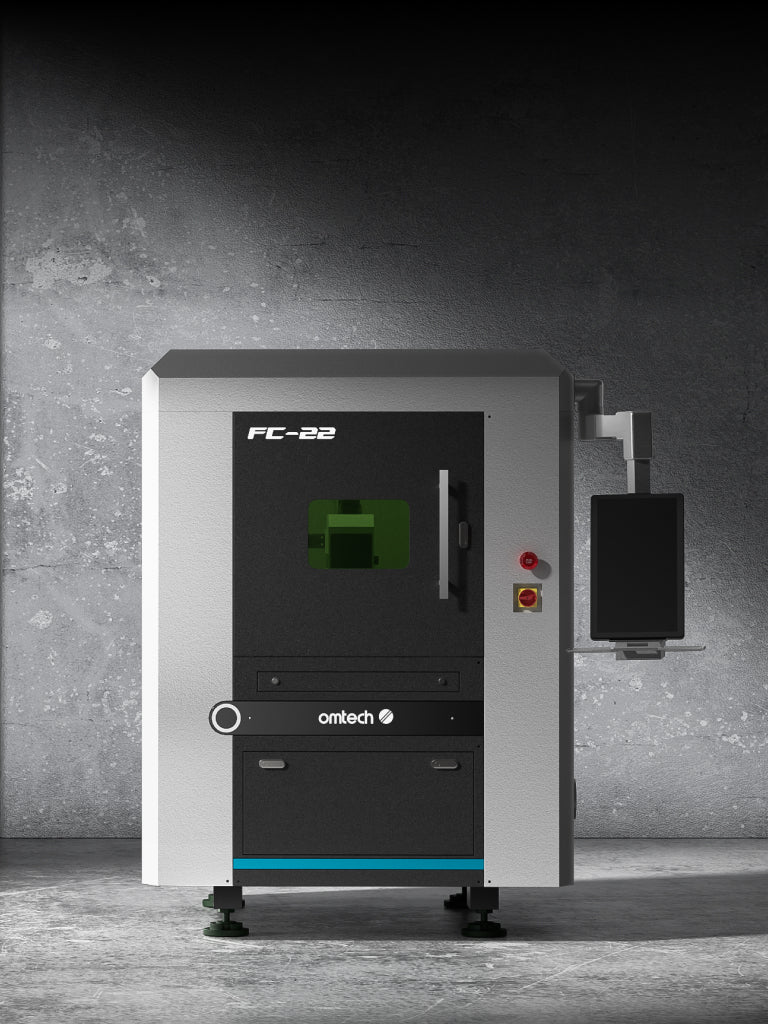

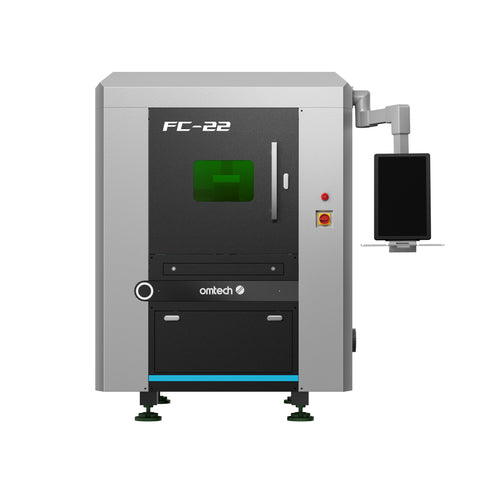

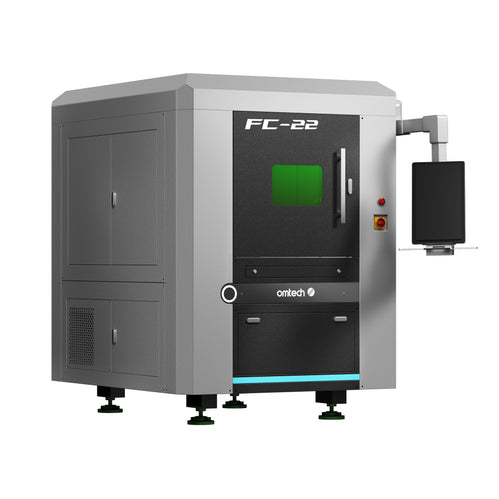

OMTech FC-22 1500W Fully Enclosed Fibre Laser Cutting Machine with Front & Back Pass Through & Built-in Water Chiller
Free Shipping within UK
Free Shipping within UK
Couldn't load pickup availability
OMTech FC-22
Professional Laser Cutting, Now Within Reach

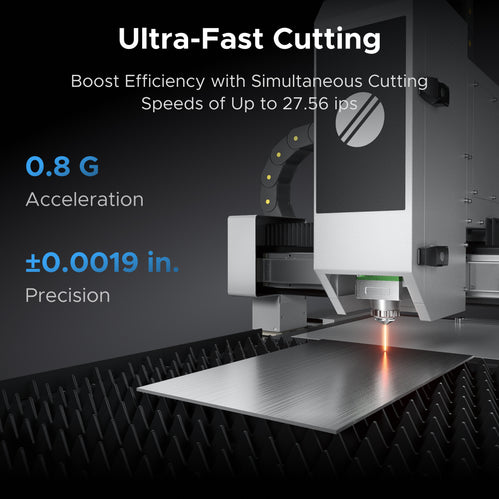

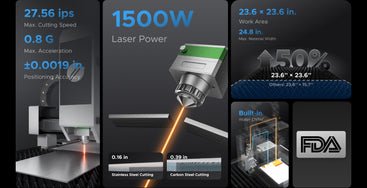

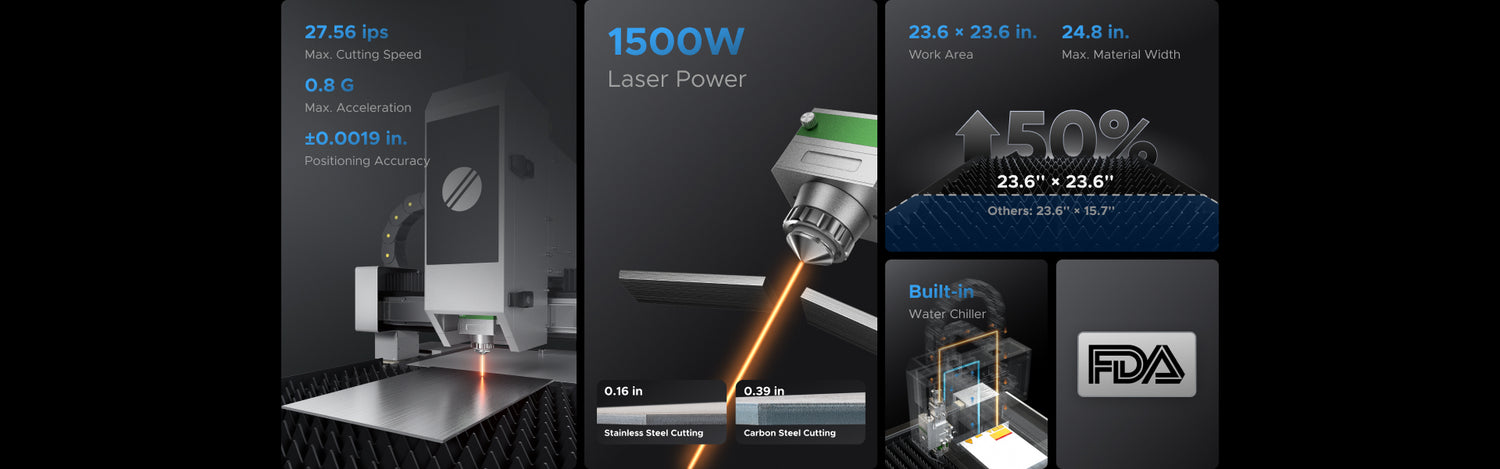

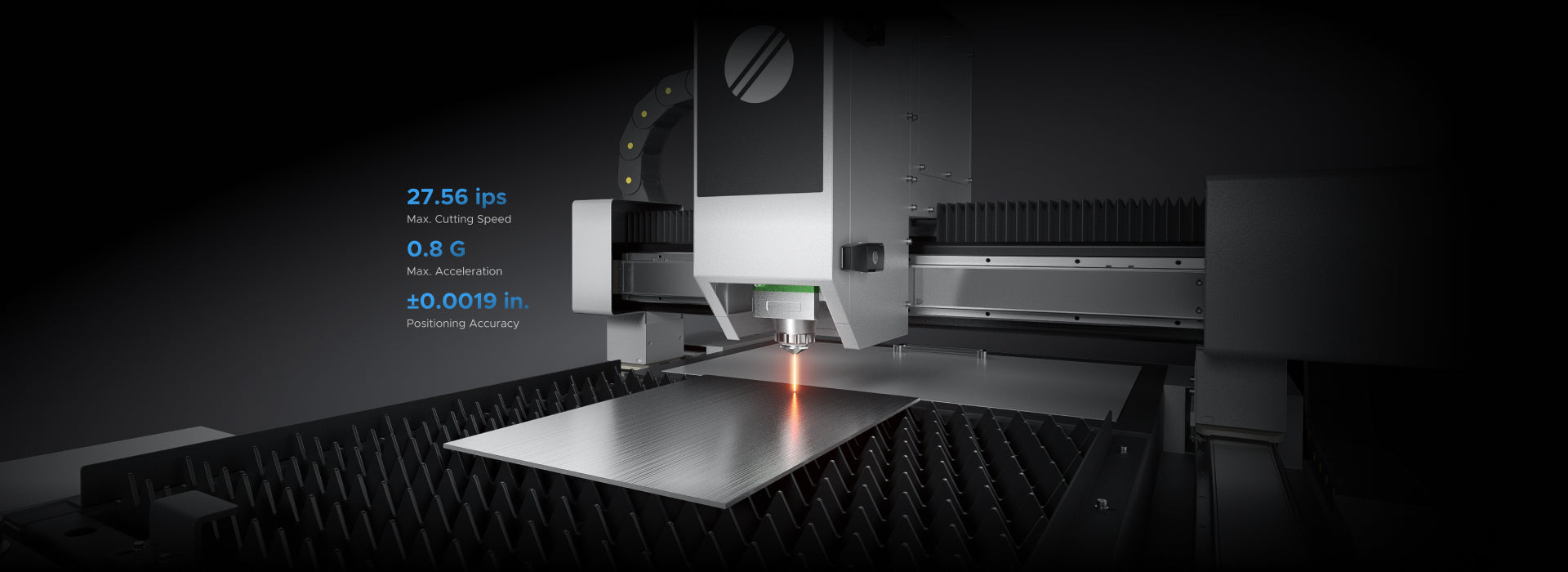

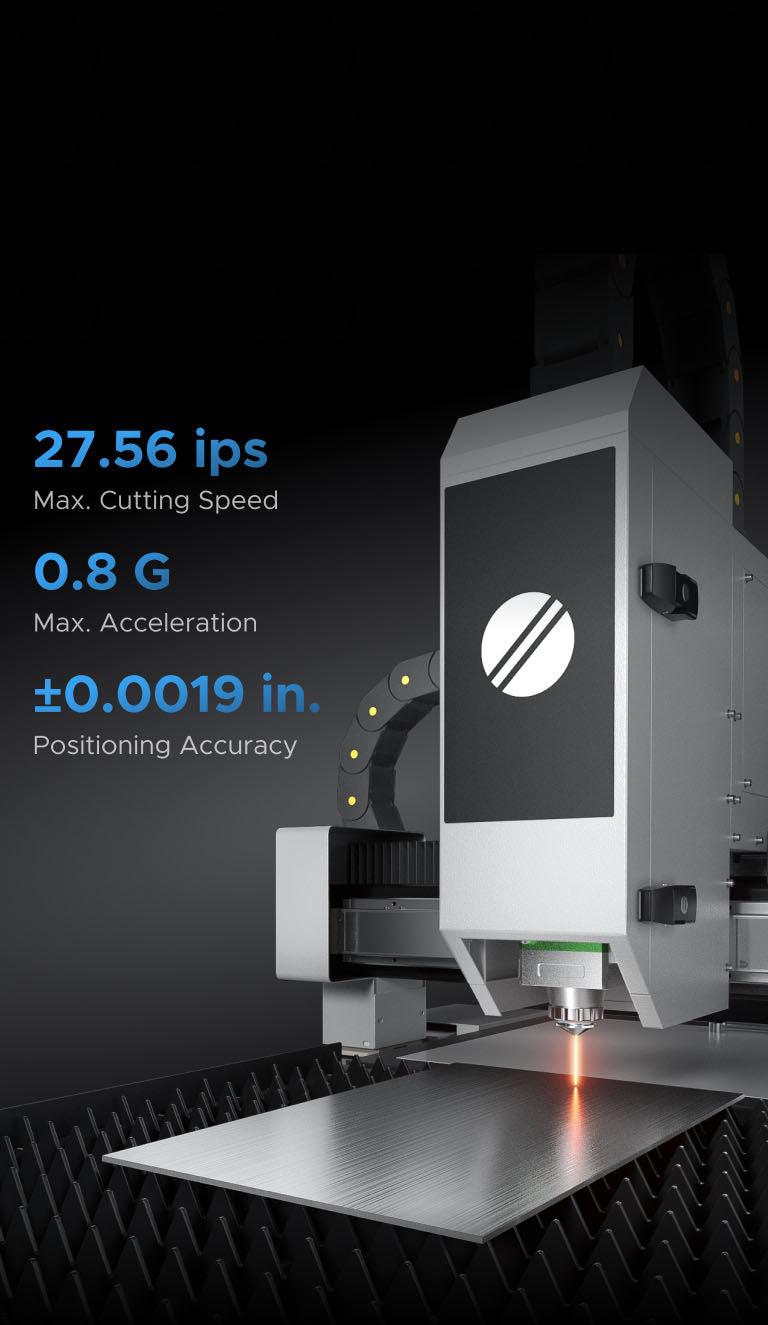

Lightning-Fast Speed
The impressive cutting speed of up to 27.56 ips makes our fiber cutting machine the ideal choice for those needing fast, precise results in less time.
Lightning-Fast Speed
The impressive cutting speed of up to 27.56 ips makes our fiber cutting machine the ideal choice for those needing fast, precise results in less time.
Enlarged Workspace
The 23.6 × 23.6 in. work area, capable of handling materials up to 24.8 in. wide,
allows you to confidently handle large-scale projects.
Enlarged Workspace
The 23.6 × 23.6 in. work area, capable of handling materials up to 24.8 in. wide,
allows you to confidently handle large-scale projects.

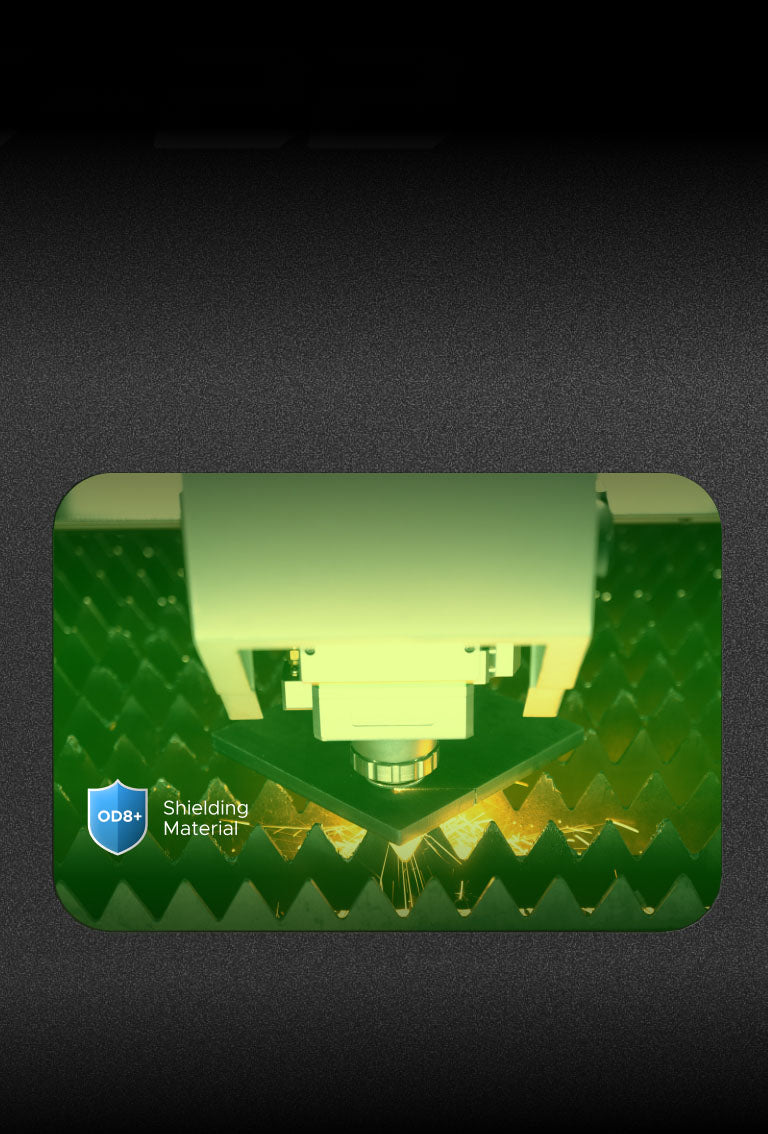

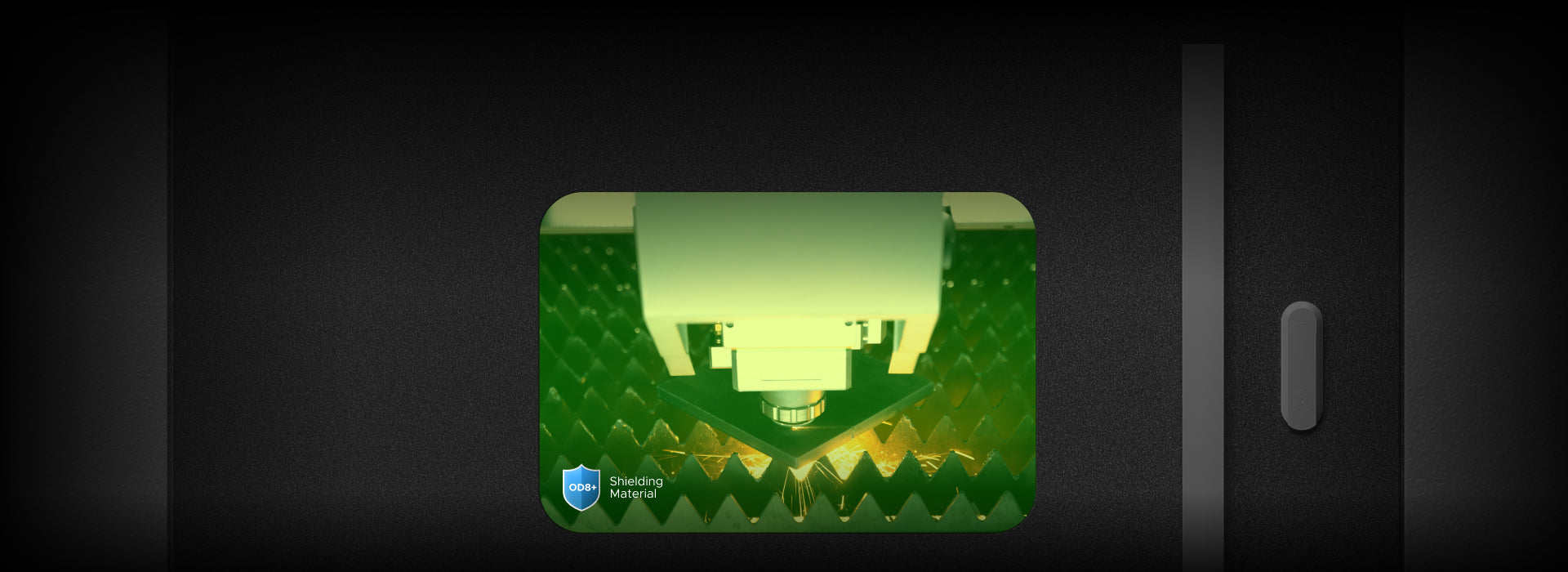

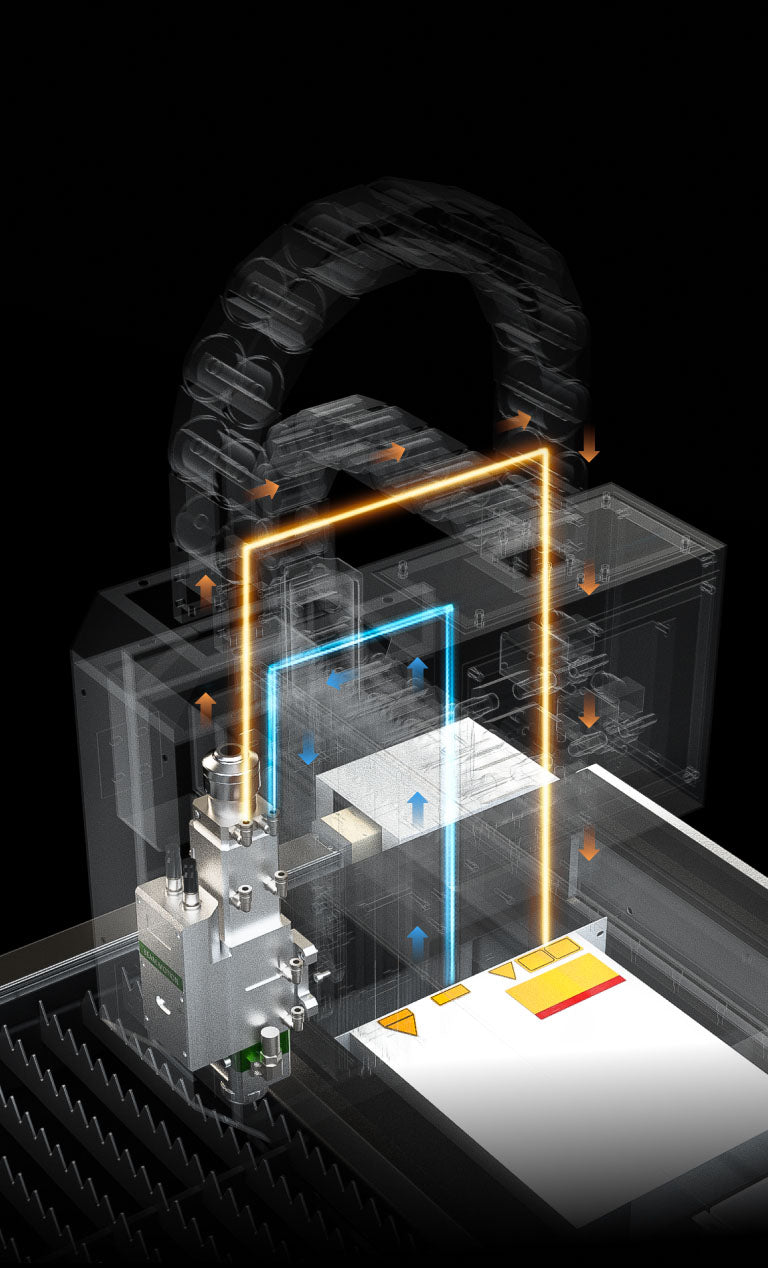

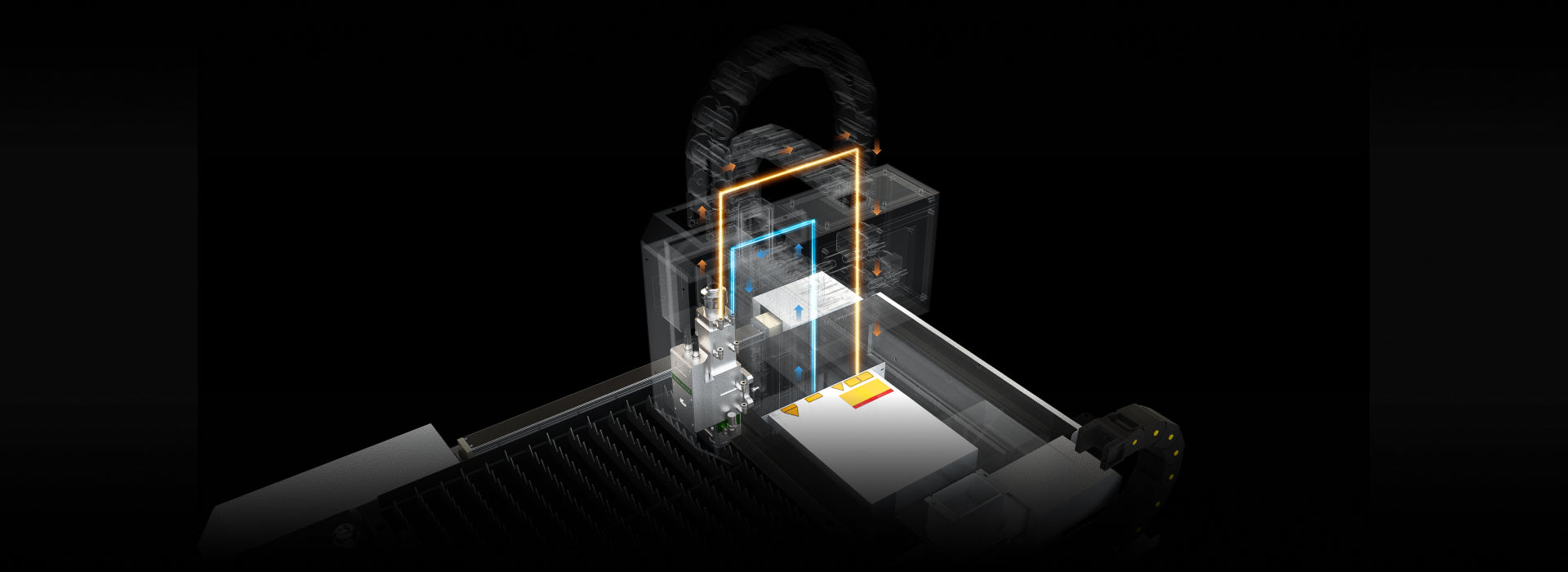

Extensive Protection
The machine features a fully-enclosed design with an OD8+ safety window for clear observation while preventing laser leakage.
The safety relays and interlocks provide extra security during operation.
Extensive Protection
The machine features a fully-enclosed design with an OD8+ safety window for clear observation while preventing laser leakage.
The safety relays and interlocks provide extra security during operation.

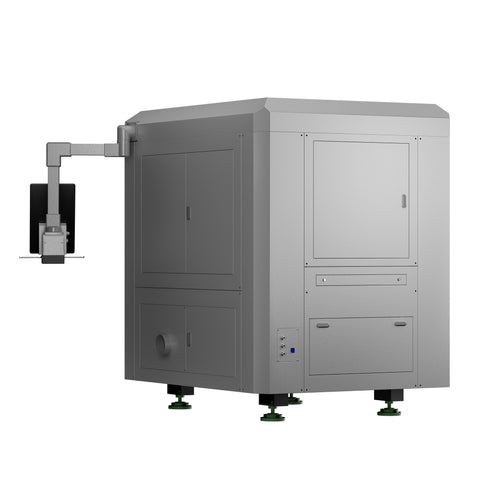

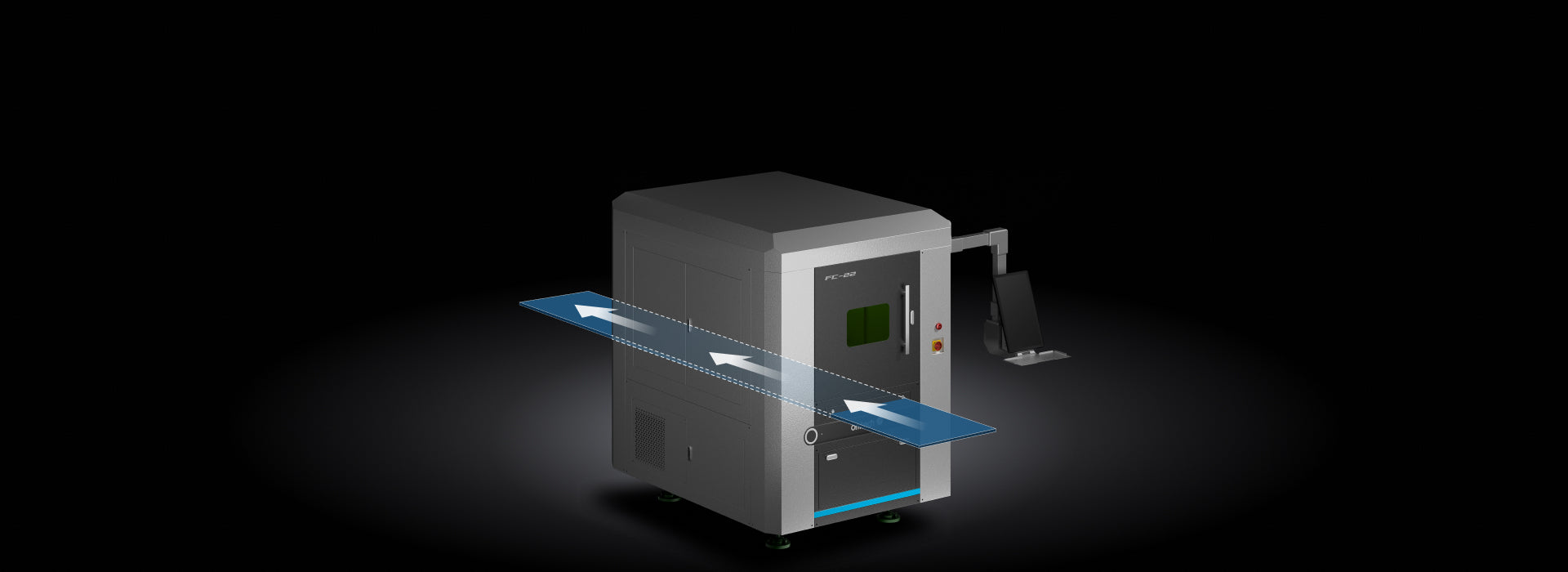

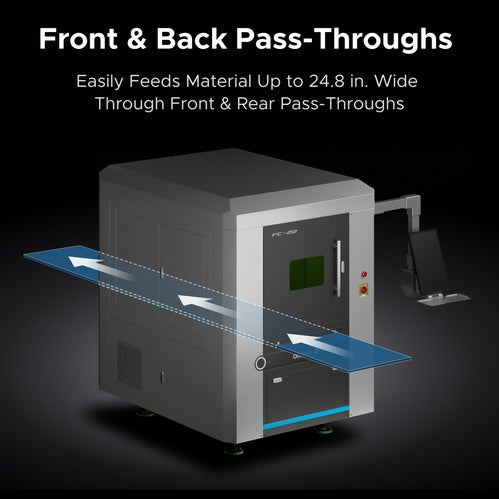

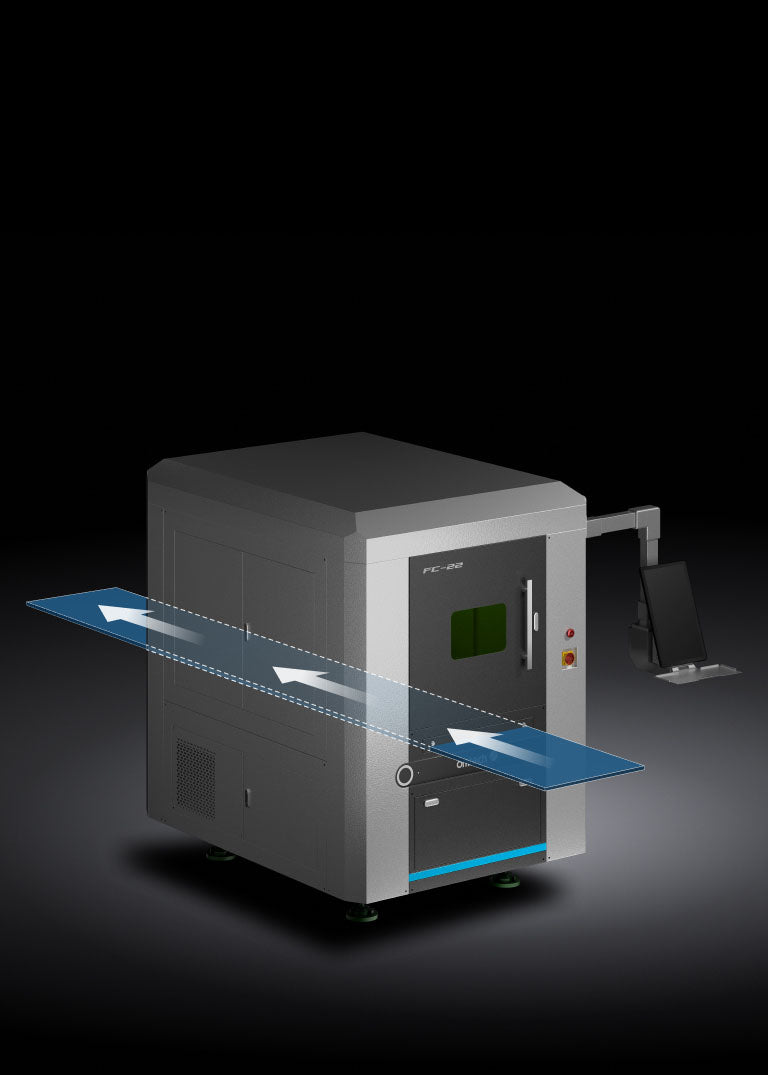

Dual Pass-Throughs
Designed with both front and rear pass-through openings, this cutting machine accommodates longer materials
and gives you greater flexibility in your work.
Dual Pass-Throughs
Designed with both front and rear pass-through openings, this cutting machine accommodates longer materials
and gives you greater flexibility in your work.
All-in-One Convenience
With a 1500W water chiller and laser supply already integrated, this machine eliminates complicated setups,
saving space while getting you ready to work immediately.
All-in-One Convenience
With a 1500W water chiller and laser supply already integrated, this machine eliminates complicated setups,
saving space while getting you ready to work immediately.

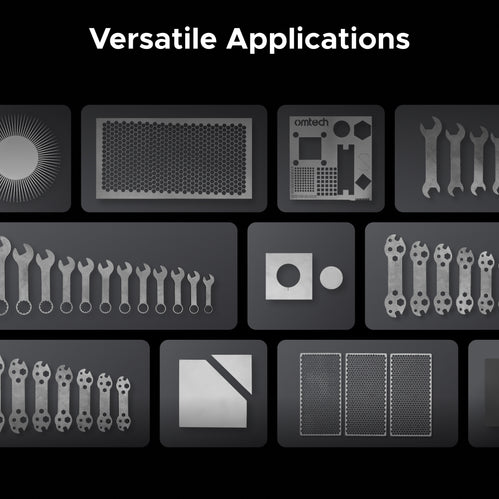

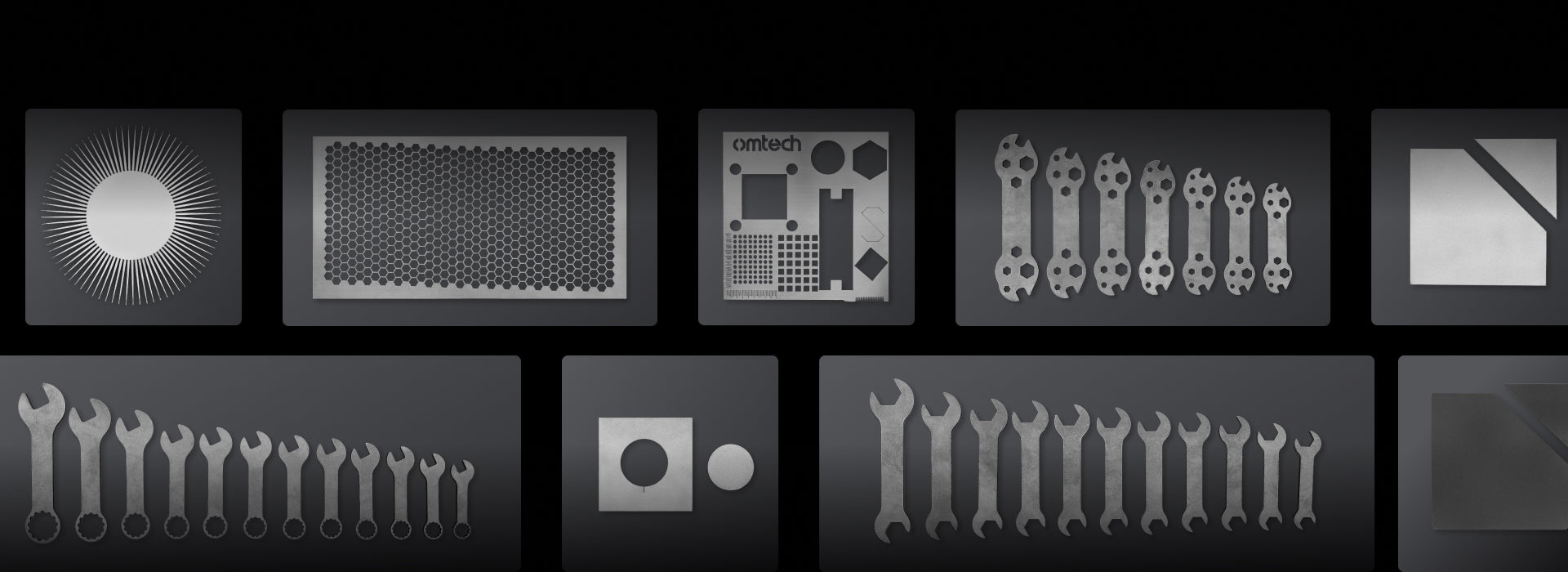

Wide Application
Whether you're crafting intricate DIY creations, designing custom signage,
or tackling demanding industrial applications, this versatile machine rises to every challenge with exceptional ease.
Wide Application
Whether you're crafting intricate DIY creations, designing custom signage,
or tackling demanding industrial applications, this versatile machine rises to every challenge with exceptional ease.
Model: FC-22
Max. Input Power: 12 kW
Laser Rated Power: 1500 W
Wavelength: 1080 nm
Rated Voltage/Frequency: AC 220 V, 60 Hz
Processing Area: 23.6×23.6 (in.)/ 600×600 (mm)
Front Pass-Through Size: 23.6×1.97 (in.)/ 600×50 (mm)
Back Pass-Through Size: 23.6×1.97 (in.)/ 600×50 (mm)
Max. Material Height: 0.39 in./ 10 mm

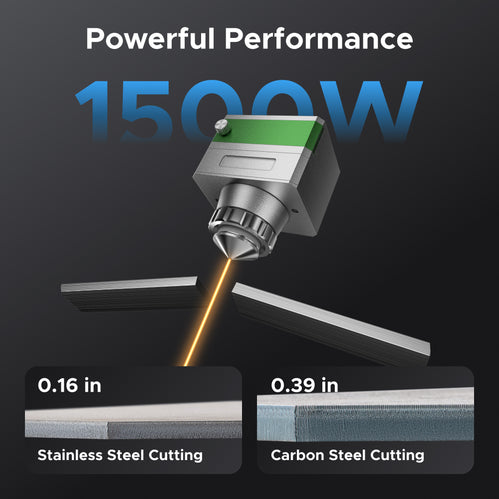

Max. Cutting Depth (Carbon Steel): 0.39 in./ 10 mm
Positioning Accuracy: ±0.0019 in./ ±0.05 mm
Work Table Maximum Load: 110 lb./ 50 kg
Max. Processing Speed (Idle): 1.96 IPS/ 50 mm/s
X/Y Axis Max Speed: 19.68 IPS/ 30 m/min
X/Y Axis Max Acceleration: 231.5 ips²/ 0.6G
X-Axis Travel: 23.6 in./ 600 mm
Y-Axis Travel: 23.6 in./ 600 mm
Z-Axis Travel: 3.15 in./ 80 mm
Control System: Weihong LS2000
Certification: CE, FDA
Total Power Supply Protection Level: IP54
Dimensions: 106.3×70.9×80.9 (in.)/ 2700×1800×2055 (mm)
Net Weight: 2976.2 lb./ 1350 kg
Max. Input Power: 1500w
Max. Airflow (±10%): 2060 cfm/ 3500 m³/h
Port Diameter: 5.91 in./ 150 mm
Exhaust Hose: Ø5.91×118.1 (in.)/ Ø150×3000 (mm)
Max. Input Power: 1800W
Nominal Cooling Capacity: 12624.9±5% Btu/h 3181.4±5% kcal/h / 3.7±5% (kW)
Temp Range: 77–86 (℉)/ 25–30 (℃)
Voltage Stabilizer x1
External Fan x1
Exhaust Hoses x2
Hose Clamps x2
Keyboard x1
Mouse x1
Laser Keys x2
Laser Head Cover Keys x2
Pass-Through Door Keys x2
Access Door Keys x8
Handle x1
Tool Box x1
Hex Wrenches x1 set
Flathead Screwdriver & Phillips Screwdrivers (6×100 & 3×75) x4
Adjustable Wrench (12 inches) x1
8G USB Flash Drive x1
QBH Cap (For maintenance) x1
Laser Safety Glasses x1
Cotton Swab x1
Laser Calibration Paper x1
Transparent Tape x1
Double-Sided Tape x1
Ceramic Body x1
Collimation Protective Lens (D24.9×1.5) x1
Focus Protective Lenses (D27.9×4.1) x10
Single-Layer Nozzles x4
Single-Layer Nozzles x6
