Free Laser Engraving Files: The Best Sites to Download in 2023

What are Laser Engraving Files?

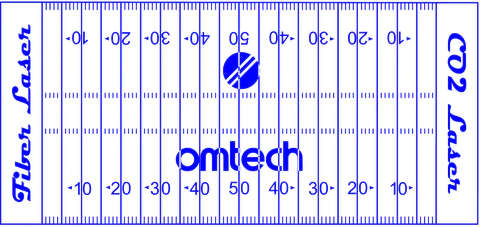

(SVG File designed by Jim Schwarzbach)

The laser engraving file is an electronic file that contains design patterns, images, or text information. They are usually in vector graphics formats such as SVG (Scalable Vector Graphics) or DXF (Data Exchange Format), which describe images and shapes as mathematical formulas rather than pixels. This enables laser engraving machines to precisely control the position and intensity of the laser beam according to the instructions in the file, allowing for precise cutting or engraving on materials.

Laser Cutter File Types and Formats

The file types and formats for laser cutting machines are similar to laser engraving files. Common file types include SVG, DXF, AI (Adobe Illustrator), CDR (CorelDRAW), and others. These file types can be recognized and parsed by laser cutting machine software for cutting operations.

SVG (Scalable Vector Graphics): SVG is an XML-based open standard vector graphics format widely used for laser cutting. It can describe the mathematical paths of graphics and shapes, allowing laser cutting machines to accurately cut along these paths.

DXF (Data Exchange Format): DXF is a vector graphics file format developed by Autodesk and widely used in CAD (Computer-Aided Design) software. DXF files can contain descriptions of geometric elements such as lines, polygons, and arcs. Laser cutting machine software can parse DXF files for corresponding cutting operations.

AI (Adobe Illustrator): AI is the native file format of Adobe Illustrator software, supporting vector graphics and layers. By importing AI files into laser cutting machine software, the vector graphics can be converted into cutting paths for cutting operations.

CDR (CorelDRAW): CDR is the native file format of CorelDRAW software and is also a vector graphics file format. Similar to AI files, CDR files can contain vector graphics and layers, and can be imported into laser cutting machine software for cutting operations.

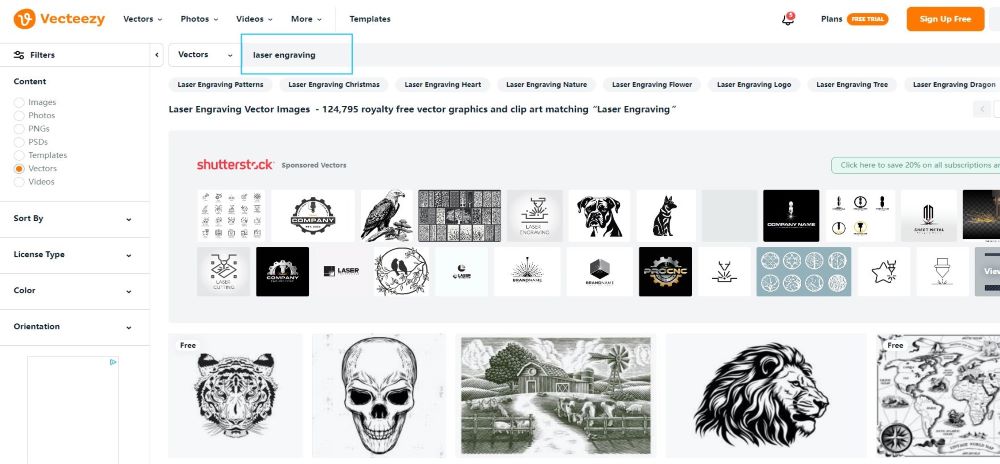

1. Vecteezy (https://www.vecteezy.com/free-vector/laser-engraving)
Vecteezy offers a wide range of free vector graphics, including laser engraving designs. It also provides various categories and allows users to download these vector files for free.

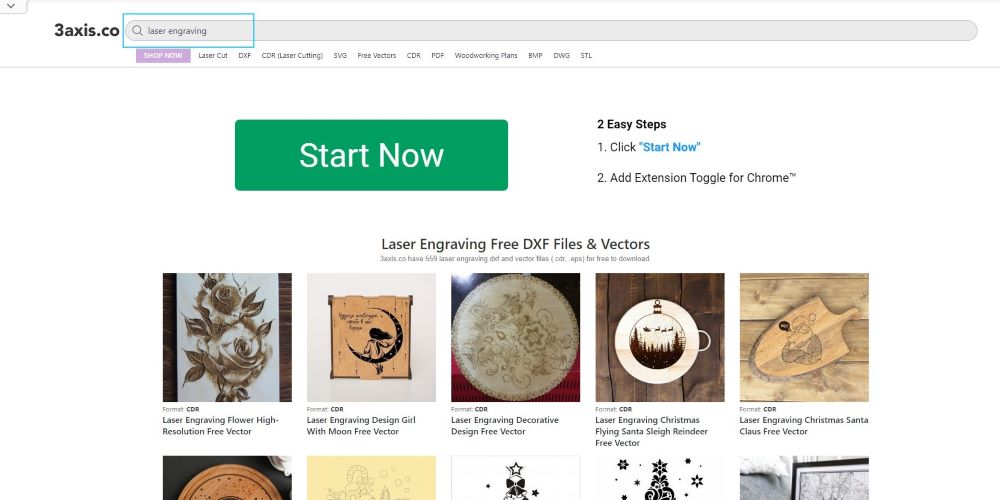

2. 3axis.co (https://3axis.co/free-vectors/laser+engraving)
3axis.co is dedicates to offering free vector files specifically tailored for laser engraving purposes. Users can access a diverse collection of designs specifically related to laser engraving on this website and effortlessly download and utilize these files for their respective projects.

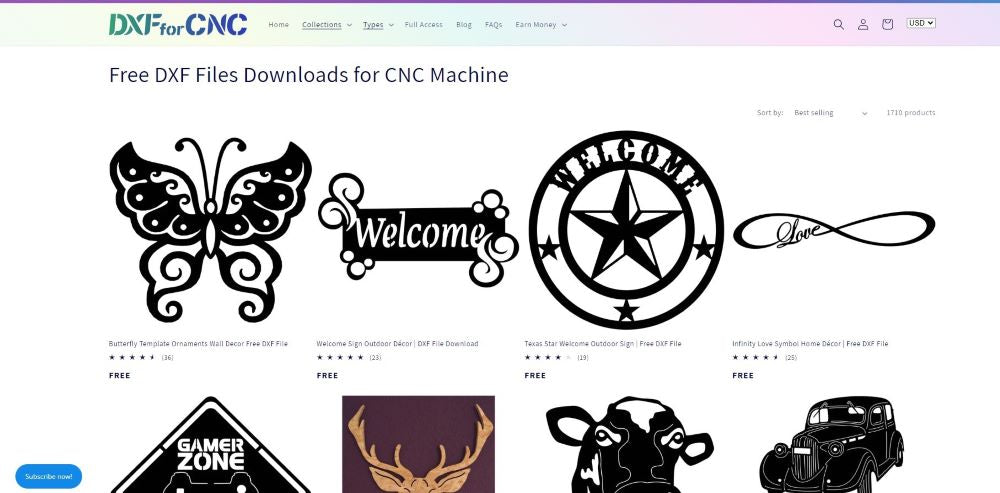

3. DXFforCNC(https://www.dxfforcnc.com/collections/free-dxf-files)
DXFforCNC specializes in providing an extensive assortment of free DXF files created specifically for CNC machines and laser engraving applications. Within the website, users are able to explore various categories and effortlessly download these files at no cost, allowing them to incorporate them seamlessly into their CNC projects.

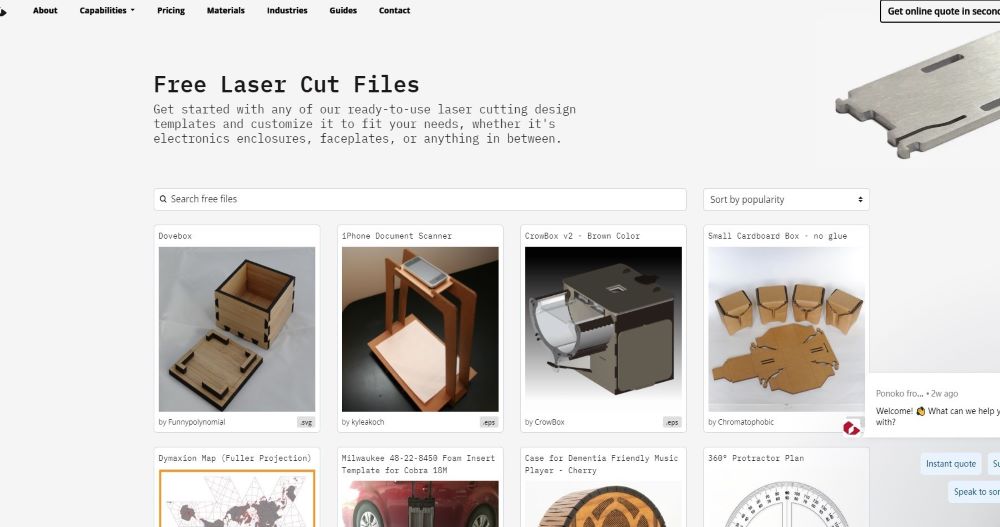

4. Ponoko(https://www.ponoko.com/free-laser-cutting-files-templates)
Ponoko presents complimentary laser cutting files and templates to users. It curates a collection of pre-designed files that are fully prepared for laser cutting and engraving purposes. Users have the option to download these files at no charge, serving as an excellent foundation for initiating their own laser cutting projects within the local community.

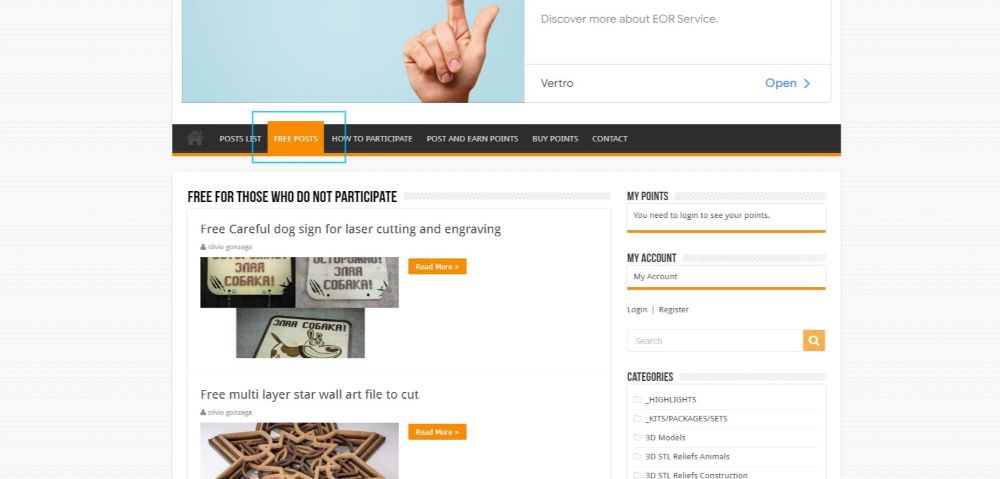

5. DXFDownloads(https://www.dxfdownloads.com/category/free)
DXFDownloads provides a diverse selection of complimentary DXF files suitable for numerous applications. Notably, it features a dedicated category exclusively for laser engraving designs. Users have the opportunity to freely download these files and seamlessly integrate them into their own laser engraving projects, ensuring substantial convenience and resourcefulness.

How to Make Your Own Laser Cut Files?

OMTech laser engraving machines are efficient and cost-effective devices suitable for various creative and manufacturing projects. Here are some steps to help you convert laser engraving templates downloaded from the above five websites into finished products:

1. Prepare the file: Download and save the chosen laser engraving template file to your computer. Make sure the file format is compatible with the laser engraving machine, such as SVG, DXF, etc.

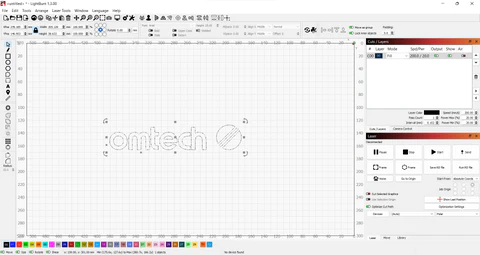

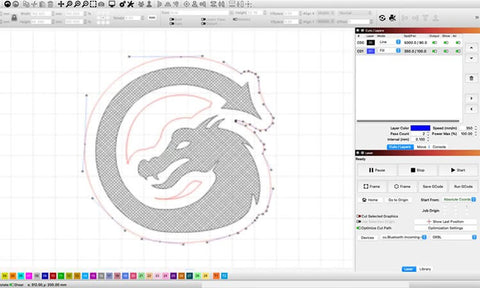

2. Open laser engraving software: Use software compatible with your laser engraving machine, such as LightBurn, CorelDRAW, etc., to open your template file.

3. Adjust settings: Adjust the power, speed, focal length, and other parameters of the laser engraving machine according to your material type and thickness. Ensure that the settings are suitable for your material to achieve the best engraving effect.

4. Position and secure the material: Place your material on the working table of the laser engraving machine and secure it with fixtures or magnetic supports. Ensure that the material is stable and the distance from the laser head is correct.

5. Start engraving: Preview and confirm the position and size of the design in the software. Then, start the laser engraving machine to complete the automatic engraving process. Keep an eye on the machine's operation nearby to ensure everything is safe.

6. Completion and cleanup: After the engraving is finished, carefully remove the material. Perform post-processing if necessary, such as removing residual dust or burn marks. Now, your laser engraving project, from template to finished product, is completed!

Conclusion

Through the free laser engraving templates websites and the use of OMTech laser engraving machines, we can easily turn our creativity into exquisite finished products. Whether personalized gifts, decorations, or practical crafts, laser engraving technology provides us with a vast creative space. Unleash your imagination and create stunning works using these resources and tools!

Frequently Asked Questions (FAQ)

1. Where can I find free laser engraving files?

You can access many websites offering free laser-engraving and cutting files, including vector libraries like Vecteezy, design marketplaces with free tiers, or portals such as 3axis that list hundreds of ready-to-use templates.

2. What file formats should I look for to use with my laser machine?

Look for formats commonly supported by laser software and drivers, such as SVG, DXF, AI, or CDR. These formats allow you to import, scale, or edit designs easily before engraving or cutting.

3. Are these free files always safe to use commercially?

Not necessarily. Some free laser engraving files come with restricted licenses (e.g., for personal use only or limited commercial runs). Always check the specific usage terms before producing items for sale or large-scale distribution.

4. How do I ensure a free design works well with my laser setup?

First, open the file in your design or CAM software and verify dimensions, line thickness, and vector paths. Then run a small test cut or engraving to check material compatibility, machine settings, and final finish before committing to full production.

5. Can I modify free laser files for my own projects?

Yes, if the license allows it. Many free resources permit editing and customization (such as adding logos or changing dimensions), but ensure you retain correct attribution if required and abide by any commercial restrictions.

6. What should I do if I can’t find exactly the right design?

If you don’t find a perfect match, you can edit a close design or use vector software to create one from scratch. Alternatively, consider combining elements from multiple free files to build a custom layout tailored to your project.

7. How do I make sure the file is “laser-ready”?

Make sure the file has clean vector outlines (no stray nodes or overlapping paths), is properly scaled to your material thickness, and that the design separates cutting lines (typically red) from engraving or scoring lines (e.g., black). A clean, well-prepared file reduces wasted time and material.
