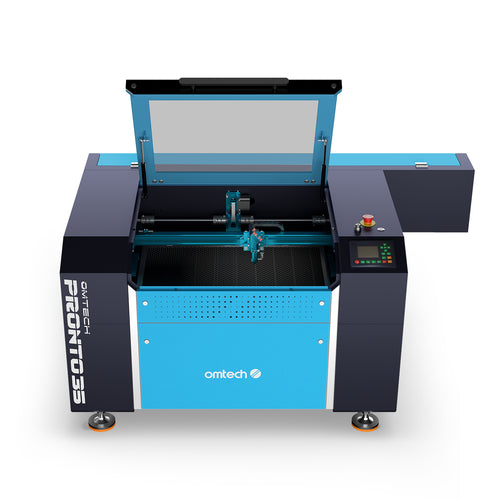

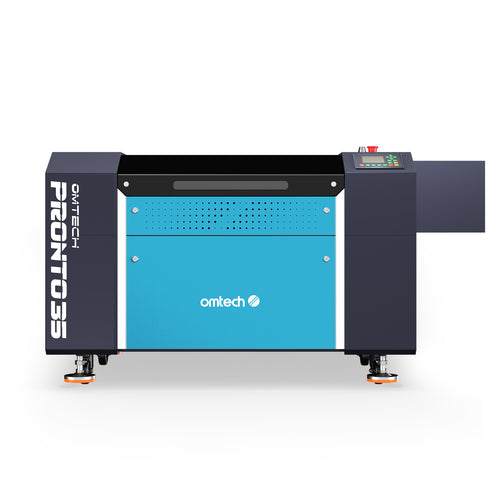

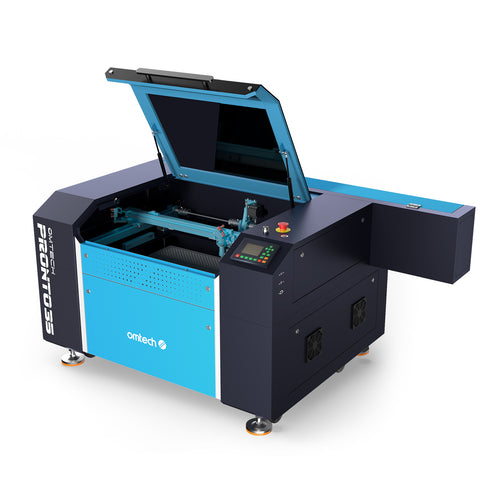

100W CO2 Laser Engraving Machine & Cutter with 700×500 mm Engraving Area and Autofocus| Pronto-35X
Free shipping within UK mainland
Free shipping within UK mainland
Couldn't load pickup availability
Recommended bundle:
LightBurn software
Rotary Axis
Water Chiller
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk
A Faster Money Maker 37% increase in efficiency
Speed Up Your Profits Engraves at 1000mm/s – 37% Faster Than Competitors
Upgraded Transmission System - Superior Accuracy in Every Detail
Experience unparalleled engraving precision with our upgraded transmission system
X-Axis: V-wheel design for smooth, high-speed movement
Y-Axis: High-precision belt for ultimate accuracy
Z-Axis: Ball screw for stable, quiet elevation
The upgraded transmission system brings cleaner engraving and cutting accuracy.

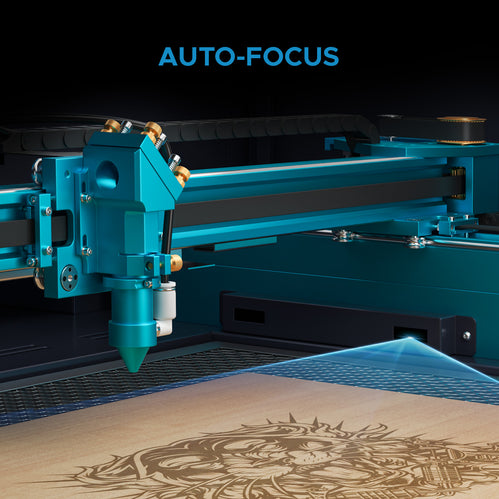

Auto-Focus with Red Dot Indicator

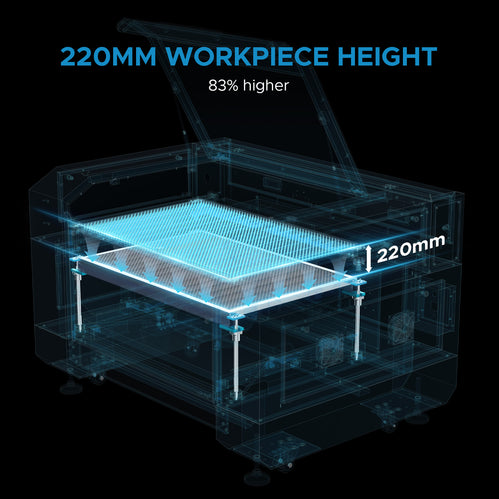

8.7 in. Workpiece Height
Experience smoke-free laser engraving
The turbocharged fan, with an airflow 66% higher than 540 m³/h, quickly removes smoke and dust to deliver sharper engravings.
The enhanced air assist delivers 3.2× greater efficiency with a 125 L/min airflow and an enlarged 8 mm tube for deeper cuts and cleaner edges.
Integrated Red Light for Enhanced Visibility
Upgraded Frame Design with Enhanced Stability
Enhanced with stainless-steel edging and an additional pin for stability.
The front and rear sections can be opened to expand the working area for engraving and cutting larger materials.
Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with enormous sizes of up to 256 MB.

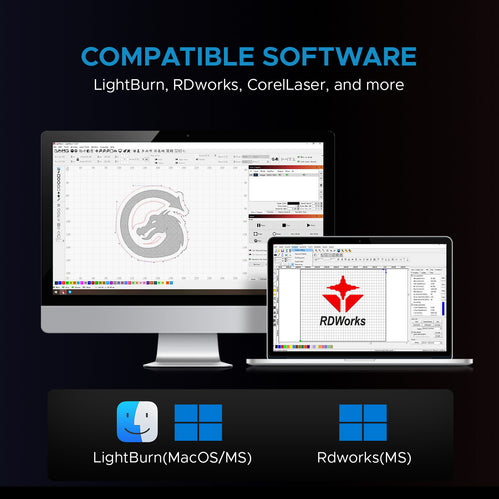

Compatibility with popular LightBurn software (sold separately) and free RDWorks.
Rotary axis compatibility (sold separately) allows for precise 3D engraving on round and cylindrical objects like cups, bottles, and spheres, expanding creative design possibilities and enabling batch processing.
A Safer Money Maker Class-1 Safety Level
The Pronto monitors temperature in real-time. If it overheats, it stops, resets, and alerts you!
Our OMTech CO2 laser engraving machine emits a wavelength of 10600 nm with a measured radiation power of 3.42 W/m2, well below the Class 1 limit of 1000 W/m2 for invisible lasers. This confirms that our machine is safe for prolonged use without causing harm to eyes or skin, ensuring a secure working environment for users.

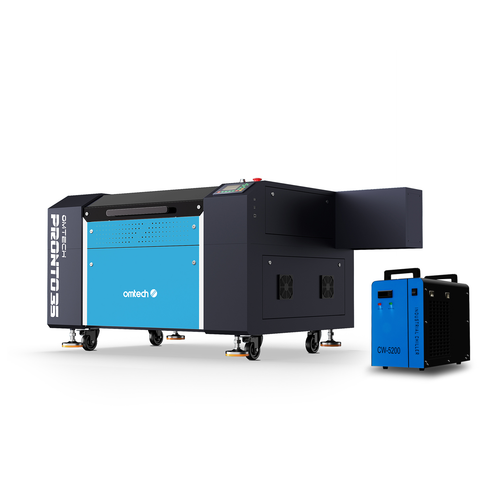

Our engraver includes an advanced water cooling system to efficiently dissipate heat from the laser tube, ensuring optimal performance and extending the machine's lifespan. Please note that the water chiller needs to be purchased separately for best results.
Harnessing built-in pressure sensors, our system ensures safe laser engraving. If the pressure drops, an alarm will trigger, reducing risk in your workplace.
The flame-retardant PC board of the Pronto minimizes fire risk. It includes a real-time temperature sensor that halts laser emission at 55°C, triggers an alarm, and returns the laser head to its starting position to prevent damage.
Color: Blue, Gray
Product Dimensions(L*W*H): 59.1 × 39.8 × 32.3 in. (1500 × 1010 × 820 mm)
Package Dimensions(L*W*H): 63.4 × 44.5 × 40.2 in. (1610 × 1130 × 1020 mm)

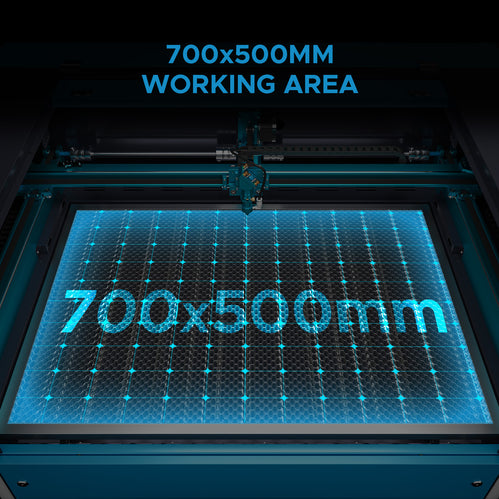

Engraving Area: 27.6 x 19.7 in. (700x500 mm)
Front & Back Pass-Through Size: 32.9 x 3.8 in. (836x97 mm)
Rated Power: 90W
Est. Service Life (at <40% Power): 12,000 hr.
Max. Engraving Speed: 39.4 ips (1000 mm/s)
Laser Tube Length: 49.2 in. (1250 mm)
Laser Tube Diameter: 2.4 in. (60 mm)
Compatible Operating Systems: Windows 2000, XP, Vista, 7, 8, 10
Bundled Software: RDWorks
Compatible Software (not incl.): LightBurn, CorelLaser, RDWorks
Supported Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga
Data Transmission: USB Cable, WiFi, Ethernet Cable
Certification: CE, FDA
Net Weight: 474 lb. (215 kg)
1x Laser Engraver
1x Exhaust Fan
2x Exhaust Pipes
1x Power Cord
1x USB Cable
1x Ethernet Cable
3x Pipe Clamps
2x Laser Keys
4x Access Keys
1x USB Flash Drive
2x Focus Lens Repair Tools
1x Hex Wrench Set
1x Flat-Head Screwdriver
1x Phillips Screwdriver
2x Water Hoses
1x Water Chiller Alarm Cable
1x Reverse Compensation Card
1x Air Assist Pump
1x Double-Sided Tape
1x Silicone Sealant
2x Water Hose Clamps
1x Ceramic Testing Resistor
1x Tool Box
1x User Manual
