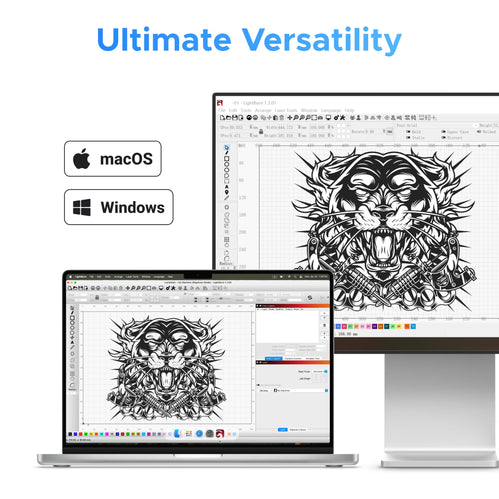

Recommended software:
LightBurn software
Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk

 Shipping

                  Shipping

                 Payment

                  Payment

                 Warranty

                  Warranty

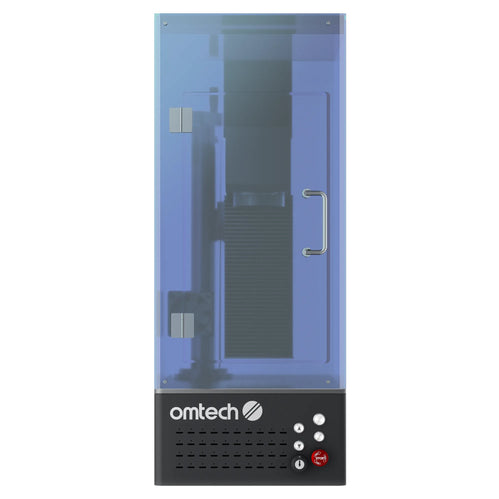

                OMTech Auto-Focus Galvo Fiber
Laser Marker



              Automated Focus for Simplified Marking

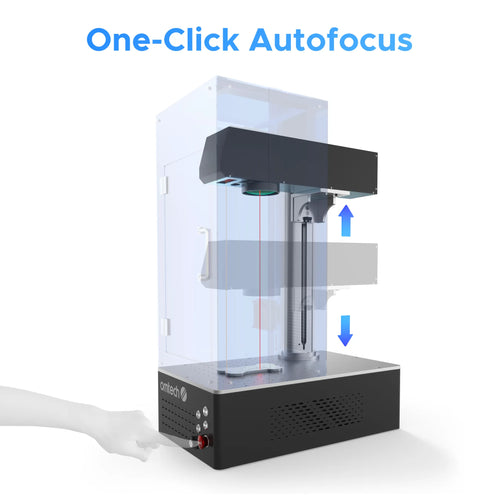

        One-Click Autofocus
No More Manual Adjustments & Guesswork

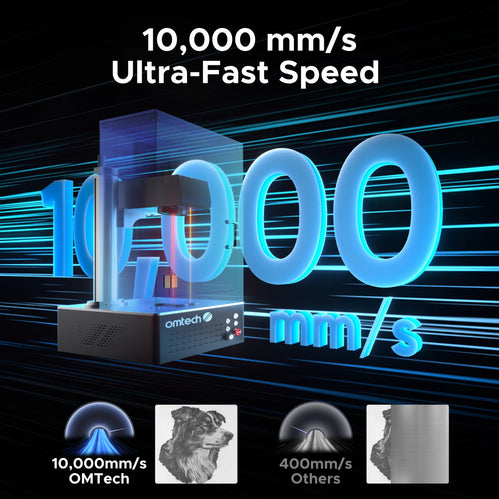

        10,000 mm/s Ultra-Fast Speed
Cut Down on Production Time and Increase Efficiency


















    Laser Power: 30W
Laser Wavelength: 1064 nm
Laser Frequency: 30-60 kHz
Pulse Width: 80-120 ns
Field Lens Focal Length: 210 mm
Processing Area: 150 x 150 mm
Workbed Area: 250 x 340 mm
Max. Engraving Speed: 393.7 ips (10,000 mm/s)
Max. Engraving Depth: 0.03 mm
Positioning Accuracy: ±1 mm
Marking Accuracy: ±0.01 mm
Est. Laser Service Life (MTTF): 100,000 hr.
Operating Temp.: 32-104°F (0-40°C)
Operating Software: EzCad2 for Windows 7, 8, 10, & 11
Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif

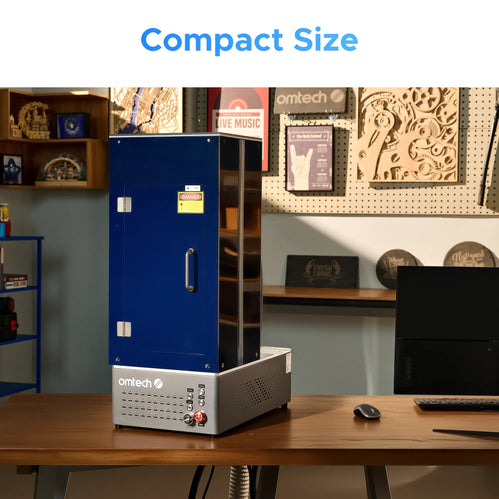

Overall Dimensions: 68 x 34 x 71 cm
Net Weight: 24.5 kg
1x Control Box with Laser Arm
1x Support Column
1x Power Cord
1x USB Cable
1x USB Flash Drive
2x Laser Keys
1x Ruler
1x Hex Wrench Set
2x Position Lock Bars
1x Installation Screw Set
1x Pair of Safety Goggles
1x Remote Control Terminal
1x Screwdriver
1x Manual
